VND830

Motor / Motion / Ignition Controllers & Drivers DOUBLE CHNL HS DRV

product image

VND830 Picture
See larger image
SeekIC No. : 00533903 Detail

VND830: Motor / Motion / Ignition Controllers & Drivers DOUBLE CHNL HS DRV

VND830 Data Sheet

floor Price/Ceiling Price

US $ 1.17~1.51 / Piece | Get Latest Price
Part Number:
VND830
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~765
  • 765~1000
  • 1000~2000
  • 2000~5000
  • Unit Price
  • $1.51
  • $1.3
  • $1.24
  • $1.17
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : High Side Supply Current : 0.012 mA
Mounting Style : SMD/SMT Package / Case : SO-16L
Packaging : Tube

Description

Product :
Operating Supply Voltage :
Mounting Style : SMD/SMT
Packaging : Tube
Type : High Side
Supply Current : 0.012 mA
Package / Case : SO-16L


Pinout

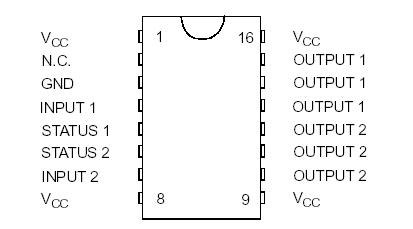

Connection Diagram


Specifications

Symbol Parameter Value Unit

VCC

DC Supply Voltage

 41 V

-VCC

Reverse DC Supply Voltage

 -0.3 V

- IGND

 DC Reverse Ground Pin Current

-200

mA

IOUT

DC Output current

Internally Limited A

-IOUT

 Reverse DC Output Current

-6

A

IIN

DC Input Current

 +/- 10 mA
ISTAT

DC Status Current

 +/- 10 mA
VESD

Electrostatic Discharge (Human Body Model: R=1.5K; C=100pF)
- INPUT
- STATUS
- OUTPUT
- VCC

 4000
4000
5000
5000		 V
V
V
V

EMAX

Maximum Switching Energy
(L=1.8mH; RL=0; Vbat=13.5V; Tjstart=150; IL=9A)

 102 mJ

Ptot

Power Dissipation Tlead=25°C

8.3

W

Tj

Junction operating temperature

 Internally Limited

Tc

Case Operating Temperature

- 40 to 150

Tstg

Storage Temperature

 -55 to 150




Description

The VND830 is a monolithic device made by using STMicroelectronics VIPower M0-3 Technology, intended for driving any kind of load with one side connected to ground.

Active VCC pin voltage clamp protects the VND830 devices against low energy spikes (see ISO7637 transient compatibility table). Active current limitation combined with thermal shutdown and automatic restart protects the device against overload. The device detects open load condition both is on and off state. Output shorted to VCC is detected in the off state. Device automatically turns off in case of ground pin disconnection.




Parameters:

Technical/Catalog InformationVND830
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Package / Case16-SOIC (7.5mm Width)
Mounting TypeSurface Mount
TypeHigh Side
Voltage - Supply5.5 V ~ 36 V
On-State Resistance60 mOhm
Current - Output / Channel-
Current - Peak Output9A
PackagingTube
Input TypeNon-Inverting
Number of Outputs2
Operating Temperature-40°C ~ 150°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names VND830
VND830
