VND810

On Time (Max) :
Off Time (Max) :
Mounting Style : SMD/SMT
Number of Outputs : 2
Maximum Operating Temperature : + 150 C
On Resistance (Max) : 160 mOhms
Operating Supply Voltage : 5.5 V to 36 V
Package / Case : SO-16
Supply Current (Max) : 0.012 mA

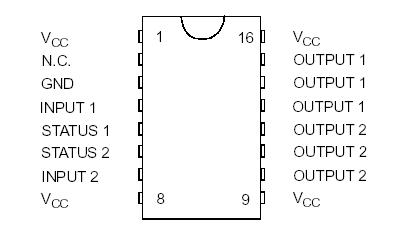

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	DC Supply Voltage	41	V
-VCC	Reverse DC Supply Voltage	-0.3	V
- IGND	DC Reverse Ground Pin Current	-200	mA
IOUT	DC Output current	Internally Limited	A
-IOUT	Reverse DC Output Current	-6	A
IIN	DC Input Current	+/- 10	mA
ISTAT	DC Status Current	+/- 10	mA
VESD	Electrostatic Discharge (Human Body Model: R=1.5K; C=100pF) - INPUT - STATUS - OUTPUT - VCC	4000 4000 5000 5000	V V V V
EMAX	Maximum Switching Energy (L=1.5mH; RL=0; Vbat=13.5V; Tjstart=150; IL=5A)	26	mJ
Ptot	Power Dissipation TC=25°C	8.3	W
Tj	Junction operating temperature	Internally Limited
Tc	Case Operating Temperature	- 40 to 150
Tstg	Storage Temperature	-55 to 150

Description

The VND810 is a monolithic device designed in STMicroelectronics VIPower M0-3 Technology,intended for driving any kind of load with one side connected to ground.

Active V_CC pin voltage clamp protects the device VND810 against low energy spikes (see ISO7637 transient compatibility table). Active current limitation combined with thermal shutdown and automatic restart protects the device against overload. The device detects open load condition both in on and off state. Output shorted to V_CC is detected in the off state. Device automatically turns off in case of ground pin disconnection.

Parameters:

Technical/Catalog Information	VND810
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	16-SOIC (3.9mm Width)
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	5.5 V ~ 36 V
On-State Resistance	160 mOhm
Current - Output / Channel	-
Current - Peak Output	5A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	2
Operating Temperature	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VND810 VND810
