VN808-E

Rise Time :
Fall Time :
Supply Voltage - Max :
Product :
Mounting Style : SMD/SMT
Packaging : Tube
Supply Voltage - Min : 10.5 V
Maximum Power Dissipation : 96000 mW
Package / Case : PowerSO-36
Maximum Operating Temperature : 150 C
Type : Octal Channel
Supply Current : 150 mA


Features:

VCC/2 compatible input
Junction over-temperature protection
Case over-temperature protection for thermal independence of the channels
Current limitation
Shorted load protection
Undervoltage shudown
Protection against loss of ground
Very low stand-by current
Compliance to 61000-4-4 IEC test up to 4KV

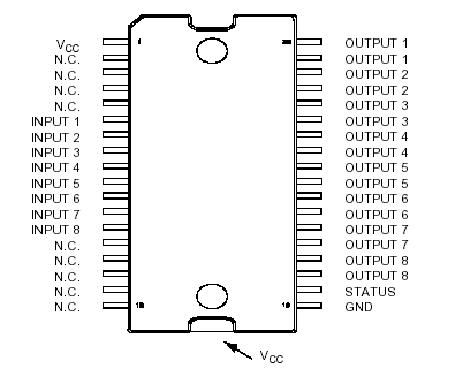

Pinout




Specifications

Parameter	Symbol	Value	Units
DC supply voltage (Overvoltage protected)	VCC	45	V
DC ground pin reverse current TRAN Ground pin reverse current pulse duration < 1ms)	VC	-250 -6	MA
DC reverse ground pin current	-IGND	200	A
DC output current	IOUT	Internally limited	mA
Reverse DC output current	- IOUT	24	mA
DC input current	IIN	± 10	mA
DC current sense disable input current	ICSD	-3/+VCC
DC status current	-ICSENSE	+/- 10	°C/W
Electrostatic discharge ( R = 1.5 KΩ; C = 100 pF )	VCSENSE	2000	V
Power dissipation TC = 25 °C	E MAX(1)	96	W
Junction operating temperature	VESD	2	H
Case operating temperature	VESD	Internally Limited	°C
Storage temperature	Tj	Internally Limited	°C
Single-pulse avalanche energy	Tstg	-55 to 150	°C

Description

The VN808-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended for driving any kind of load with one side connected to ground.Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, channel turns OFF and back ON automatically so as to maintain junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, overloaded channel is turned OFF and and will restart only when case temperature has decreased down to TCR( see waveform 3 Figure 8 on page 11). Non overloaded channels continue to operate normally. Device automatically turns OFF in case of ground pin disconnection. This device VN808-E is especially suitable for industrial applications conform to IEC 61131

Parameters:

Technical/Catalog Information	VN808-E
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	36-PowerSOIC
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	10.5 V ~ 45 V
On-State Resistance	150 mOhm
Current - Output / Channel	-
Current - Peak Output	1.7A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	8
Operating Temperature	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VN808 E VN808E 497 4494 5 ND 49744945ND 497-4494-5
