Product Details

Description



Features:

• Single 5V(±10%) or 3.3V(+10%,-5%) only power supply
• High speed t RAC acess time: 50/60ns
• Low power dissipation
- Active wode : 5V version 660/605 mW (Mas)
                         3.3V version 432/396 mW (Mas)
- Standby mode: 5V version 1.375 mW (Mas)
                         3.3V version 0.54 mW (Mas)
• Extended - data - out(EDO) page mode access
• I/O level: TTL compatible (Vcc = 5V)
                   LVTTL compatible (Vcc = 3.3V)
• 2048 refresh cycle in 32 ms(Std.) or 128 ms(S-version)
• 4 refresh modesh:
- RAS only refresh
- CAS - before - RAS refresh
- Hidden refresh
- Self-refresh(S-version)

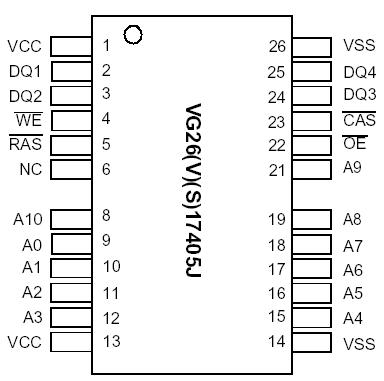

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
Voltage on any pin relative to Vss       5V
                                                            3.3V 		VT -1.0 to + 7.0
-0.5 to + 4.6		 V
Supply voltage relative to Vss             5V
                                                           3.3V		 VCC -1.0 to + 7.0
-0.5 to + 4.6		 V
Short circuit output current IOUT 50 mA
Power dissipation PD 1.0 W
Operating temperature TOPT 0 to + 70
Storage temperature TSTG -55 to + 125



Description

The VG26(V)(S)17405FJ CMOS Dynamic RAM organized as 4,194,304 words x 4 bits with extended data out access mode. VG26(V)(S)17405FJ is fabricated with an advanced submicron CMOS technology and designed to operate from a single 5V only or 3.3V oniy power supply. Low voltage operation is more suitable to be used on battery backup,portable electronic application. A new refresh feature called "self-refresh" is supported and very slow CBR cycles are being performed. lt is packaged in JEDEC standard 26/24-pin plastic SOJ.
