Product :	Electronic Ignition Drivers	Type :	High Voltage Ignition Coil Driver Power I.C
Mounting Style :	SMD/SMT	Package / Case :	PowerSO-10
Packaging :	Tube

Description

Operating Supply Voltage :
Supply Current :
Mounting Style : SMD/SMT
Packaging : Tube
Product : Electronic Ignition Drivers
Package / Case : PowerSO-10
Type : High Voltage Ignition Coil Driver Power I.C

Features:

PRIMARY COIL VOLTAGE INTERNALLY SET
COIL CURRENT LIMIT INTERNALLY SET
LOGIC LEVEL COMPATIBLE INPUT
DRIVING CURRENT QUASI PROPORTIONAL TO COLLECTOR CURRENT
DOUBLE FLAG-ON COIL CURRENT

Pinout

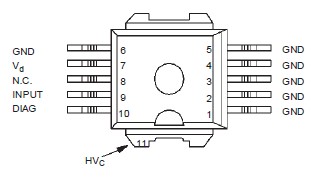

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
HV_c	Collector voltage	Internally limited	V
I_C	Collector current	Internally limited	A
V_d	Driving stage supply voltage	7	V
I_d	Driving circuitry supply current	200	mA
V_IN	Input voltage	10	V
T_j	Junction operating temperature	-40 to 150	°C
T_stg	Storage temperature	-55 to 150	°C

Description

The VB027SP is a high voltage power integrated circuit made using the STMicroelectronics VIPower] technology, with vertical current flow power darlington and logic level compatible driving circuit. Built-in protection circuit for coil current limiting and collector voltage clamping allows the VB027SP device to be used as smart, high voltage, high current interface in advanced electronic ignition system.
