Product Details

Description



Features:

PRIMARY COIL VOLTAGE INTERNALLY SET
COIL CURRENT LIMIT INTERNALLY SET
LOGIC LEVEL COMPATIBLE INPUT
DRIVING CURRENT QUASI PROPORTIONALTO COLLECTOR CURRENT
SINGLE FLAG-ON COIL CURRENT

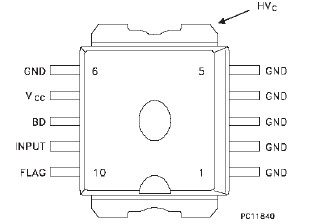

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
HVC Collector Voltage (Internally Limited) -0.3 to Vclamp V
IC Collector Current (Internally Limited) 10 A
IC(gnd) DC Current on Emitter Power ± 10.5 (*) A
VCC Driving Stage Supply Voltage -0.3 to 7 V
Is Driving Circuitry Supply Current ± 200 mA
Is(gnd) DC Current on Ground Pin ±1 A
Vin Input Voltage -0.3 to VCC + 0.3 V
Iin Maximum Input Current 100 mA
fin Logic Input Frequency in Operative Mode DC to 150 Hz
Vout(flag) Output Voltage Primary Threshold Current Level -0.3 to VCC + 0.3 V
Iout(f lag) Flag Output Current 100 mA
Pmax Power Dissipation (TC = 105 ) TBD W
Es/b Clamped Energy During Output Power Clamping 300 mJ
VESD ESD Voltage (HVC Pin) ±4 KV
VESD ESD Voltage (Other Pins) ±2 KV
IBD Input Darlington Base Current 150 mA
VBD Input Darlington Base Voltage Internally Limited V
Tj Operating Junction Temperature -40 to 150
Tstg Storage Temperature Range -55 to 150
(*) With 10 mils Al wire


Description

The VB025BSP is a high voltage power integrated circuit made using STMicroelectronics VIPower Technology, with vertical current flow power darlingtonand logic level compatible driving circuit.

Built-in protection circuits for coil current limiting and collector voltage clamping allows the VB025BSP to be used as a smart, high voltage,high current interface in advanced electronic ignition systems.
