V61C5181024

Features: High-speed: 10, 12, 15 ns Fully static operation All inputs and outputs directly TTL compatible Three state outputsLow data retention current (VCC = 2V) Single 5V ± 10% Power SupplyLow CMOS Standby current of 5 mA maxPackages 32-pin TSOP 32-pin 300 mil SOJPinoutSpecifications Sy...

product image

V61C5181024 Picture
See larger image
SeekIC No. : 004540174 Detail

V61C5181024: Features: High-speed: 10, 12, 15 ns Fully static operation All inputs and outputs directly TTL compatible Three state outputsLow data retention current (VCC = 2V) Single 5V ± 10% Power SupplyLow CMO...

V61C5181024 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
V61C5181024
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 High-speed: 10, 12, 15 ns
Fully static operation
All inputs and outputs directly TTL compatible
Three state outputs
 Low data retention current (VCC = 2V)
Single 5V ± 10% Power Supply
 Low CMOS Standby current of 5 mA max
 Packages
   32-pin TSOP
   32-pin 300 mil SOJ


Pinout

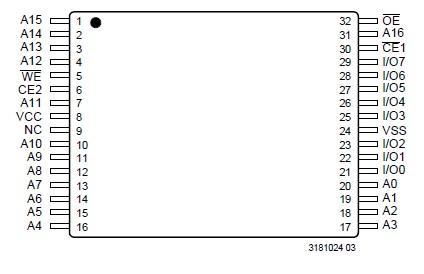

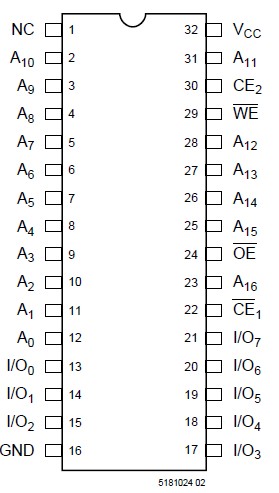

Connection Diagram Connection Diagram




Specifications

Symbol
Parameter
Commercial
Units

  VCC

Supply Voltage

 -0.5 to +7

 V

VN
 Input Voltage

 -0.5 to +7

V
VDQ
Input/Output Voltage Applied
VCC + 0.5
V
TBIAS
Temperature Under Bias
-10 to +125
°C
TSTG
Storage Temperature
65 to +150
°C



Description

The V61C5181024 is a 1,048,576-bit static random-access memory organized as 131,072 words by 8 bits. Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures. The V61C5181024 is available in 32-pin SOJ, PDIP and TSOP.
