V61C31161024

Features: High-speed: 10, 12, 15 ns All inputs and outputs directly TTL compatible Three state outputs Single 3.3V± 10% Power SupplyPackages 44-pin TSOP (Standard) 44-pin 400 mil SOJ Low Power Consumption Active: 140mA Standby: 2mA (CMOS)PinoutSpecifications Symbol Parameter Com...

product image

V61C31161024 Picture
See larger image
SeekIC No. : 004540171 Detail

V61C31161024: Features: High-speed: 10, 12, 15 ns All inputs and outputs directly TTL compatible Three state outputs Single 3.3V± 10% Power SupplyPackages 44-pin TSOP (Standard) 44-pin 400 mil SOJ Low Power Con...

V61C31161024 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
V61C31161024
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 High-speed: 10, 12, 15 ns
All inputs and outputs directly TTL compatible
Three state outputs
Single 3.3V± 10% Power Supply
 Packages
    44-pin TSOP (Standard)
    44-pin 400 mil SOJ
Low Power Consumption
   Active: 140mA
   Standby: 2mA (CMOS)


Pinout

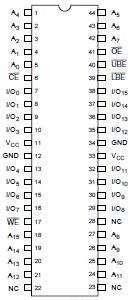

Connection Diagram


Specifications

Symbol
Parameter
Commercial
Units
VIN
 Input Voltage
-0.5 to VCC+0.5
V
PT
 Power Dissipation
1.0
W
TBIAS
Temperature Under Bias

-10 to +85
°C
TSTG
Storage Temperature
-65 to +150
°C



Description

The V61C31161024 is a 1,048,576-bit static random-access memory organized as 65,536 words by 16 bits. Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures.
