Features:

*Complete PWM power control circuitry
*Uncommitted outputs for 200 mA sink or source current
*Output control selects single ended or push pull operation
*Internal circuitry prohibits double pulses over total range
*Easy synchronization

Pinout

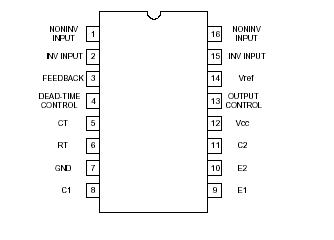

Connection Diagram

Specifications

PARAMETER	SYMBOL	VALUE	UNIT
Supply Voltage(note 1)	V_CC	41	V
Amplifier Input Voltage	V_I	V_CC+0.3	V
Collector Output Voltage	V_O	41	V
Collector Output Current	I_CO	250	mA
Continuous Total Dissipation at(or for below) 25 Free Air Temperature(note 2)	P_D	1000	mW
Operating Temperature Range	T_opr	0 TO 70
Storage Temperature Range	T_stg	-65 TO 150
Lead Temperature 1.6mm from Case for 60 Sec.	T_case	300

note 1: All voltage values, except differential voltages are with respect to the network ground terminal.
note 2:For operation above 25 free-air temperature, the dissipation derates with 9.2mW/.

Description

The UTCTL494 incorporates all the functions required in the construction of a pulse-width modulation switching circuit. Designed primarily for switching power supply control or DCDC convectors, it offers the systems engineer the flexibility to tailor control circuitry to its own application.
