Product Details

Description



Features:

*Wide operating supply voltage:Vcc=1.8V~ 6V.
*Low crossover distortion.
*Low quiescent circuit current.
*Bridge/stereo configuration.

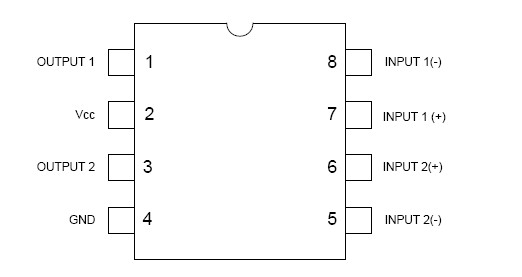

Pinout

Connection Diagram


Specifications

PARAMETER

SYMBOL

VALUE

UNIT

Supply Voltage

VCC

15

V

Output Peak Current

IO(peak)

1

A

Power Dissipation DIP-8
SOP-8

PD

1.0 (TAMB=50°C)
1.4 (TCASE=50°C)

W

0.5 (TAMB=50°C)

Operating Temperature

TJ

+150

°C

Storage Temperature

Tstg

-40 ~ +150

°C




Description

The UTCTDA2822H is a monolithic integrated audio amplifier in a 8-Pin plastic dual in line package. It is designed for portable cassette players and radios
