Product Details

Description

Features:

·Operating Voltage: 4.75 to 13V
·3 Input-1 Output
·Internal 6dB Amplifier
·Muting Function available
·Internal Clamp Function
·Cross-talk 65dB (at 4.43MHz)
·Wide Frequency Range 5MHz (1Vp-p Input)

Application

*VCR, AV -TV, Video Disc Player

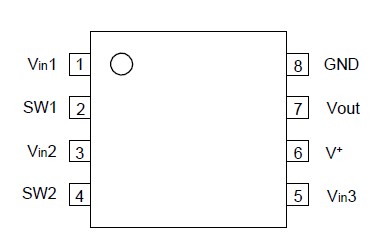

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Rating	Unit
Supply voltage	V+	15	V
Power dissipationDIP-8 SOP-8	P_D	500 300	mW
Operating temperature	T_opr	-40 ~ +85
Storage temperature	T_stg	-40 to +125

Description

The UTCM3368 is three input integrated video switch witch selects one video or audio signal from three input signals.

It contains 6dB amplifier and its operating supply voltage range is 4.75 to 13V and bandwidth is 5MHz. Crosstalk is 65dB (at 4.43MHz)
