Product Details

Description

Features:

`Single Supply
`Operating Voltage: +3V~+32V
`Low Operating Current: 0.7mA (typ.)
`Slew Rate: 0.5V/s (typ.)

Application

transducer amplifiers, DC gain blocks, and all the conventional op amp circuits which now can be more easily implemented in single power supply systems.

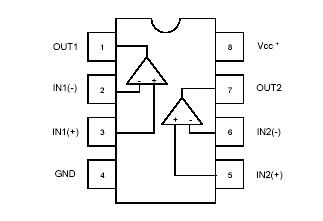

Pinout

Connection Diagram

Specifications

CHARACTERISTICS	SYMBOL	RATINGS	UNIT
Supply Voltage	V⁺⁽V⁺/V^-)	32( or±16)	V
Differential Input Voltage	V_ID	32	V
Input Voltage	V_IC	-0.3~+32	V
Power Dissipation DIP-8 SOP-8 TSSOP-8	P_D	500 300 300	mW
Operating Temperature Range	T_opr	-40~+85
Storage Temperature Range	T_stg	-50~+125

Description

The UTCM2904 consists of two independent, high gain, internally frequency compensated operation amplifiers which were designed specifically to operate from a single power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
