UTCM3366

Features: `Operating Voltage 4.75 to 13V`3 Input- 1 Output`Internal Driver Circuit for 75 lmpedance`Muting Function available`Internal Clamp Function`Low power Dissipation 16.5mA`Cross-talk 70dB (at 4.43MHz)`Wide Frequency Range 10MHz (2Vp-p Input)Application*VCR,Video Camera, AV ,TV,Video Disc Pl...

product image

UTCM3366 Picture
See larger image
SeekIC No. : 004539295 Detail

UTCM3366: Features: `Operating Voltage 4.75 to 13V`3 Input- 1 Output`Internal Driver Circuit for 75 lmpedance`Muting Function available`Internal Clamp Function`Low power Dissipation 16.5mA`Cross-talk 70dB (at...

UTCM3366 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UTCM3366
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Operating Voltage 4.75 to 13V
`3 Input- 1 Output
`Internal Driver Circuit for 75 lmpedance
`Muting Function available
`Internal Clamp Function
`Low power Dissipation 16.5mA
`Cross-talk 70dB (at 4.43MHz)
`Wide Frequency Range 10MHz (2Vp-p Input)


Application

*VCR,Video Camera, AV ,TV,Video Disc Player

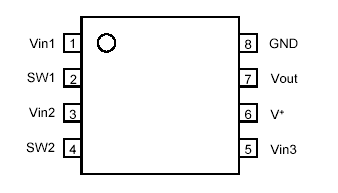

Pinout

Connection Diagram


Specifications

CHARACTERISTICS
SYMBOL
RATINGS
UNIT
Supply Voltage
V+
15
V
Power Dissipation
DIP-8
SOP-8
PD

500
300
mW
Operating Temperature Range
Topr
-20~+75
Storage Temperature Range
Tstg
-40~+125




Description

The UTCM3366 is a three input integrated video switch selects one video or audio signal from three input signals.

It contains driver circuit for 75load and is able to connect to TV monitor.

Its operating supply voltage range is 5 to 12V and bandwidth is 10MHz. Crosstalk is 70dB (at 4.43MHz).

The UTCM3366 contains clamp function and it can be operated while setting DC level fixed in position of the video signal.
