UTC1607

Features: * Low operating voltage: 2V ~ 5V.* On-chip RC oscillator.* Low stand by current.* CMOS process.PinoutSpecifications Parameter Symbol Rating Unit Supply Voltage VCC -0.3 ~ 6 V Input Voltage VIN -0.3 ~ VCC+0.3 V Output Voltage VOUT -0.3 ~ VCC+0.3 mA Operating...

product image

UTC1607 Picture
See larger image
SeekIC No. : 004539212 Detail

UTC1607: Features: * Low operating voltage: 2V ~ 5V.* On-chip RC oscillator.* Low stand by current.* CMOS process.PinoutSpecifications Parameter Symbol Rating Unit Supply Voltage VCC -0.3 ~ 6 ...

UTC1607 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UTC1607
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Low operating voltage: 2V ~ 5V.
* On-chip RC oscillator.
* Low stand by current.
* CMOS process.


Pinout

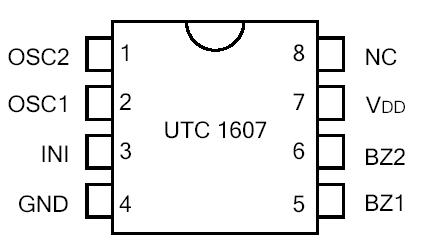

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Supply Voltage VCC -0.3 ~ 6 V
Input Voltage VIN -0.3 ~ VCC+0.3 V
Output Voltage VOUT -0.3 ~ VCC+0.3 mA
Operating temperature TOPR 0 ~ +70
Storage temperature TSTG -40 ~ +150

Note 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.
2. The device is guaranteed to meet performance specification within 0 ~70   operating temperature range and assured by design from 20 ~85




Description

The UTC1607 is a CMOS IC and design for 6 different alarm sounds application. The sound of UTC 1607 will be generated in cycling sequence.
