Product Details

Description

Features:

* Low d.c. line voltage; operates down to 1.6V (excluding polarity guard)
* Voltage regulator with adjustment static resistance
* Provides supply with limited current for external circuitry
* Symmetrical high-impedance inputs (64k for dynamic, magnetic or piezoelectric microphones
* Asymmetrical high-impedance inputs (32k for electric microphones
* DTMF signal input with confidence tone
* Mute input for pulse or DTMF dialing
* Receiving amplifier for several types of earphones
* Large amplification setting range on microphone and ear piece amplifiers
* Line loss compensation facility, line current dependent (microphone and ear piece amplifiers)
* Gain control adaptable to exchange supply
* Possibility to adjust the d.c. line voltage

Pinout

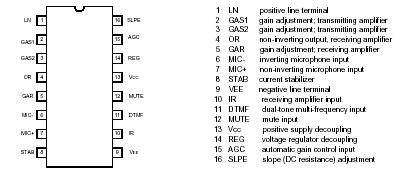

Connection Diagram

Description

The UTC1062A is a bipolar integrated circuit per- forming all speech and line interface function required in the fully electronic telephone sets. It performs electronic switching between dialing speech. The circuit is able to operate down to d.c. line voltage of 1.6v (with reduced performance) to facilitate the use of more telephone sets in parallel.
