Features:

` Low EMI, low standby current, 24 MHz oscillator
` Advanced DMA mechanism
`Fully static HALT mode with asynchronous wake-up for bus powered operation
`5V or 3.3V operation
`Improved input range 3.3V signal voltage regulator
` All unidirectional FIFOs are 64 bytes
` Power-up reset and startup delay counter simplify system design
` Simple programming model controlled by external controller
` Available in two packages
- USBN9603SLB: small footprint for new designs and portable applications
- USBN9603-28M: standard package, pin-to-pin compatible with USBN9602-28M



Pinout

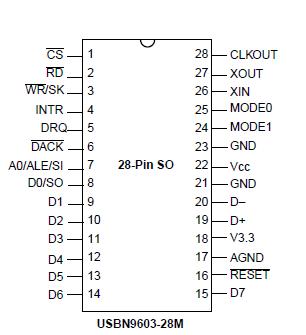

  Connection Diagram


Specifications

Supply Voltage ...............-0.5V to +7.0V
DC Input Voltage .......... -0.5V to VCC +0.5V
DC Output Voltage.........  -0.5V to VCC +0.5V
Storage Temperature ........   -65°C to +150°C
Lead Temperature (Soldering 10 seconds) ...260°C
ESD Rating1......................4.5 KV
1. Human body model; 100 pF discharged through a 1.5 KW resistor



Description

The USBN9603 is an integrated, USB Node controller that features enhanced DMA support with many automatic data handling features. It is compatible with USB specification versions 1.0 and 1.1, and is an advanced version of the currently available USBN9602.

A single IC integrates the required USB transceiver with a 3.3V regulator, a Serial Interface Engine (SIE), USB endpoint (EP) FIFOs, a versatile 8-bit parallel interface, a clock generator and a MICROWIRE/PLUS™ interface. Seven endpoint pipes are supported: one for the mandatory control endpoint and six to support interrupt, bulk and isochronous endpoints. Each endpoint pipe has a dedicated FIFO, 8 bytes for the control endpoint and 64 bytes for the other endpoints. The 8-bit parallel interface supports multiplexed and non-multiplexed style CPU address/data buses. A programmable interrupt output scheme allows device configuration for different interrupt signaling requirements.
