USB97C202

Features: ` 2.5 Volt, Low Power Core Operation` 3.3 Volt I/O with 5V input tolerance` Complete USB Specification 2.0 Compatibility− Includes USB 2.0 Transceiver− A Bi-directional Control and a Bi-directional Bulk Endpoint are provided.` Complete System Solution for interfacing ATA or A...

product image

USB97C202 Picture
See larger image
SeekIC No. : 004538817 Detail

USB97C202: Features: ` 2.5 Volt, Low Power Core Operation` 3.3 Volt I/O with 5V input tolerance` Complete USB Specification 2.0 Compatibility− Includes USB 2.0 Transceiver− A Bi-directional Control...

USB97C202 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
USB97C202
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 2.5 Volt, Low Power Core Operation
` 3.3 Volt I/O with 5V input tolerance
` Complete USB Specification 2.0 Compatibility
− Includes USB 2.0 Transceiver
− A Bi-directional Control and a Bi-directional Bulk Endpoint are provided.
` Complete System Solution for interfacing ATA or ATAPI devices to USB 2.0 bus
− Supports USB Mass Storage Compliant Bootable BIOS
− Supports ATA6 Drive capacities up to 2048GB
− True UDMA Mode 4 transfer rates
− Support for ATAPI Devices:
- CD-ROM
- CD-R
- CD-RW
- DVD
- DVD/R/W
` 8051 8 bit microprocessor
− Provides low speed control functions
− 30 Mhz execution speed at 4 cycles per instruction average
− 768 Bytes of internal SRAM for general purpose scratchpad or program execution while re-flashing external ROM
` Double Buffered Bulk Endpoint
− Bi-directional 512 Byte Buffer for Bulk Endpoint
− 64 Byte RX Control Endpoint Buffer
− 64 Byte TX Control Endpoint Buffer
` Internal or External Program Memory Interface
− 48K Byte Internal ROM or optional 64K Byte External Code Space using Flash, SRAM, or EPROM Memory
` On Board 12Mhz Crystal Driver Circuit
` Internal PLL for 480Mhz USB2.0 Sampling, 30Mhz MCU clock, and 60Mhz ATA clock
` Supports firmware upgrade via USB bus if "boot block" Flash program memory is used for optional external program memory
` 7 GPIOs for special function use: LED indicators, button inputs, etc.
− Inputs capable of generating interrupts with either edge sensitivity
− USB High Speed LED
− Serial EEPROM interface for VID/PID/Serial Number Customization
` 100 Pin STQFP (12x12x1.4 body, 2mm footprint) package


Pinout

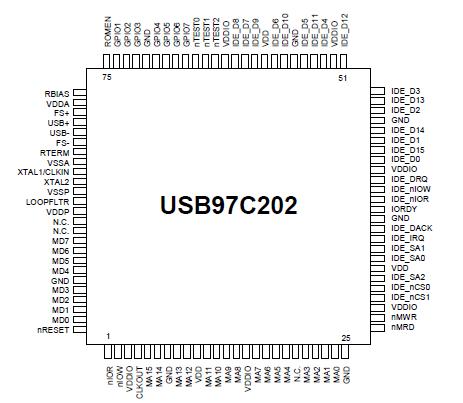

Connection Diagram


Specifications

Operating Temperature Range................................... 0  to +70
Storage Temperature Range .................................-55  to +150
Lead Temperature Range (soldering, 10 seconds) ..............+325
Positive Voltage on any pin, with respect to Ground .............. 5.5V
Negative Voltage on any pin, with respect to Ground.............-0.3V
Maximum VDDA, VDDIO .......................................................... +4.0V
Maximum VDD, VDDP...............................................................+3.0V


Description

The USB97C202 is a USB2.0 Mass Storage Class Peripheral Controller intended for use with standard ATA-5 and -6 hard drives and standard ATAPI-5 devices.

The USB97C202 consists of a USB 2.0 PHY and SIE, buffers, Fast 8051 microprocessor with expanded scratchpad and 768 of program SRAM, internal 48 KB program ROM, and an ATA-66 compatible interface.

Provisions for optional external Flash Memory up to 64K bytes for program storage is provided. A serial EEPROM which can be modified via USB from the host provides unique VID/PID/Serial numbers, as well as optional configuration information.

Internal 768 Bytes of scratchpad SRAM are also provided.. The USB97C202 can also be used for program storage to implement program upgrade via USB download to external "boot block" Flash program memory, if desired.

Seven GPIO pins are provided for controlling external power control elements and sensing specialized drive functions. Provisions are made to allow dynamic attach and re-attach to the USB bus to allow hot swap of drives to be implemented.
