UPD98402A

Features: Provision of TC sublayer function of ATM protocol physical layerSupport of SONET STS-3c frame/SDH STM-1 frame formatProvision of stop mode for cell scramble/descramble and frame scramble/descrambleDisposal/transitory selection of unassigned cells is possible.Compliant with UTOPIA interfa...

product image

UPD98402A Picture
See larger image
SeekIC No. : 004538332 Detail

UPD98402A: Features: Provision of TC sublayer function of ATM protocol physical layerSupport of SONET STS-3c frame/SDH STM-1 frame formatProvision of stop mode for cell scramble/descramble and frame scramble/d...

UPD98402A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UPD98402A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Provision of TC sublayer function of ATM protocol physical layer
Support of SONET STS-3c frame/SDH STM-1 frame format
Provision of stop mode for cell scramble/descramble and frame scramble/descramble
Disposal/transitory selection of unassigned cells is possible.
Compliant with UTOPIA interface
Incorporation of internal loopback function at PMD and ATM layer turns
PMD interface
   155.52 Mbps serial interface
   19.44 MHz parallel interface
Provided with registers for writing/reading overhead information
SOH (section overhead):  C1 (1st to 3rd) bytes, F1 byte
LOH (line overhead):  K2 byte
POH (pass overhead):  F2 byte, C2 byte
CMOS process
+5 V single power supply


Pinout

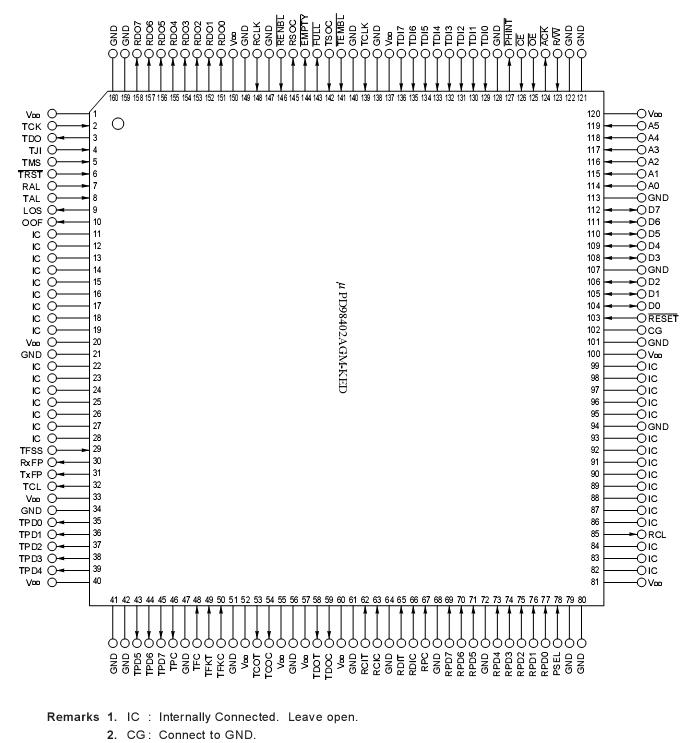

Connection Diagram


Specifications

Parameters Symbol Conditions Ratings Unit
Supply voltage VDD   0.5 to +6.5 V
Input/output voltage VI/VO   0.5 toVDD +0.5 V
Operating ambient temperature TA   0 to +70 °C
Storage temperature Tstg   65 to +150 °C
