UPD8891

Features: • Valid photocell : (5340+5340) pixels * 3 + 2670 pixels * 3• Photocell pitch : 5.25 m (1200 dpi), 10.5 m (300 dpi)• Photocell size : 5.25 * 5.25 m2 (1200 dpi), 10.5 * 8 m2 (300 dpi)• Line spacing : [1200 dpi sensor] 52.5 m (10 lines) Red line - Green line, G...

product image

UPD8891 Picture
See larger image
SeekIC No. : 004538331 Detail

UPD8891: Features: • Valid photocell : (5340+5340) pixels * 3 + 2670 pixels * 3• Photocell pitch : 5.25 m (1200 dpi), 10.5 m (300 dpi)• Photocell size : 5.25 * 5.25 m2 (1200 dpi), 10.5 *...

UPD8891 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UPD8891
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Valid photocell : (5340+5340) pixels * 3 + 2670 pixels * 3
• Photocell pitch : 5.25 m (1200 dpi), 10.5 m (300 dpi)
• Photocell size : 5.25 * 5.25 m2 (1200 dpi), 10.5 * 8 m2 (300 dpi)
• Line spacing : [1200 dpi sensor]
   52.5 m (10 lines) Red line - Green line, Green line - Blue line
  10.5 m (2 lines) Odd line Even line (for each color)
   [300 dpi sensor]
   42 m (4 lines) Red line - Green line, Green line - Blue line
• Color filter : Primary colors (red, green and blue), pigment filter (with light resistance 107 lx•hour)
• Resolution : 48 dot/mm A4 (210 * 297 mm) size (shorter side)
                    : 1200 dpi US letter (8.5" * 11") size (shorter side)
• Drive clock level : CMOS output under 5 V operation
• Data rate : 5 MHz Max.
• Power supply : +12 V
• On-chip circuits : Reset feed-through level clamp circuits
                              Voltage amplifiers


Pinout

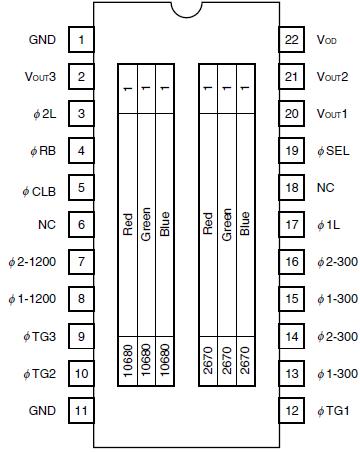

Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
Output drain voltage
VOD
−0.3 to +15
V
Shift register clock voltage
V 1-300, V 1-1200, V 1L,
V 2-300, V 2-1200, V 2L
−0.3 to +8
V
Reset gate clock voltage
V RB
−0.3 to +8
V
Reset feed-through level clamp
clock voltage
V CLB
−0.3 to +8
V
300/1200 dpi select signal voltage
V SEL
−0.3 to +8
V
Transfer gate clock voltage
V TG1 to V TG3
−0.3 to +8
V
Operating ambient temperature Note
TA
0 to +60
°C
Storage temperature
Tstg
-40 to +70
°C

Note Use at the condition without dew condensation.
Caution Product quality may suffer if the absolute maximum rating is exceeded even momentarily for any parameter. That is, the absolute maximum ratings are rated values at which the product is on the verge of suffering physical damage, and therefore the product must be used under conditions that ensure that the absolute maximum ratings are not exceeded.




Description

The PD8891 is a color CCD (Charge Coupled Device) linear image sensor which changes optical images to electrical signal and has the function of color separation.

The PD8891 has 3 rows of (5340+5340) staggered pixels, and each row has a dual-sided readout type of charge transfer register, and has 3 rows of 2670 pixels, and each row has a single-sided readout type of charge transfer register. And it has reset feed-through level clamp circuits and voltage amplifiers. Therefore, it is suitable for 1200 dpi/A4 color image scanners, color facsimiles and so on.
