UPC4093

Features: * Stable operation with 220 pF capacitive load* Low input offset voltage and offset voltage null capability ±2.5 mV (MAX.) ±7 V/°C (TYP.) temperature drift* Very low input bias and offset currents* Low noise : en = 19 nV/ Hz (TYP.)* Output short circuit protection* High input impedance ....

product image

UPC4093 Picture
SeekIC No. : 004538039 Detail

UPC4093: Features: * Stable operation with 220 pF capacitive load* Low input offset voltage and offset voltage null capability ±2.5 mV (MAX.) ±7 V/°C (TYP.) temperature drift* Very low input bias and offset ...

floor Price/Ceiling Price

Part Number:
UPC4093
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Stable operation with 220 pF capacitive load
* Low input offset voltage and offset voltage null capability
   ±2.5 mV (MAX.)
   ±7 V/°C (TYP.) temperature drift
* Very low input bias and offset currents
* Low noise : en = 19 nV/ Hz (TYP.)
* Output short circuit protection
* High input impedance ... J-FET Input Stage
* Internal frequency compensation
* High slew rate:  25 V/s (TYP.)




Pinout

  Connection Diagram

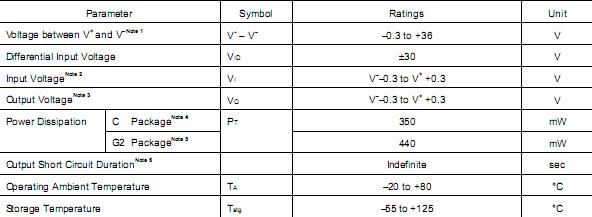

Specifications

  Connection Diagram


Description

      The  UPC4093 operational amplifier is a high-speed version of the  UPC4091.  NEC's unique high-speed PNP transistor (fT= 300 MHz) in the output stage realizes a high slew rate of 25 V/ s under voltage-follower conditions without an oscillation problem.  Zener-zap resistor trimming in the input stage produces excellent offset voltage and temperature drift characteristics.

      With AC performance characteristics that are two times better than conventional bi-FET operation amplifiers, the UPC4093 is ideal for fast integrators, active filters, and other high-speed circuit applications.
