ULQ2802A

Emitter- Base Voltage VEBO :
Collector- Base Voltage VCBO :
Maximum Collector Cut-off Current :
Power Dissipation :
Transistor Polarity : NPN
Collector- Emitter Voltage VCEO Max : 50 V
Maximum Operating Temperature : + 105 C
Mounting Style : Through Hole
Packaging : Tube
Maximum DC Collector Current : 0.5 A
Configuration : Octal
Package / Case : PDIP-18


Features:

`EIGHT DARLINGTONS PER PACKAGE .
`EXTENDED TEMPERATURE RANGE ( 40 to 105°C) .
`OUTPUT CURRENT TO 500mA .
`OUTPUT VOLTAGE TO 50V .
`INTEGRAL SUPPRESSIONDIODES .
`VERSIONS FOR ALL POPULAR LOGICFAMILIES.
`OUTPUT CANBE PARALLELED .
`INPUTS PINNED OPPOSITE OUTPUTS TO SIMPLIFY BOARD LAYOUT

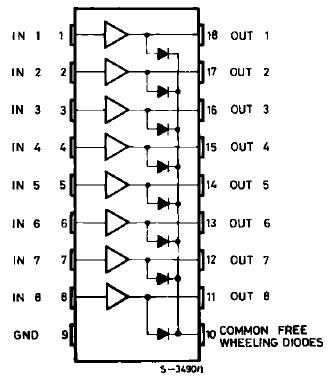

Pinout




Specifications

Symbol	Parameter	Value	Unit
Vo	Output Voltage	50	V
Vi	Input Voltage for ULQ2802A, 2803A, 2804A for ULQ2805A	30 15	V V
IC	Continuous Collector Current	500	mA
IB	Continuous Base Current	25	mA
Ptot	Power Dissipation (one Darlington pair) (total package)	1.0 2.25	W W
Tamb	Operating Ambient Temperature Range	-40 to 105
Tstg	Storage Temperature Range	-55 to 150

Description

The ULQ2801A-ULQ2805Aeach contain eight darlington transistors with common emitters and integral suppression diodes for inductive loads. Each darlington features a peak load current rating of 600mA (500mA continuous) and can withstand at least 50V in the off state.Outputsmaybe paralleled for higher current capability.

Five versions are available to simplify interfacing to standard logic families : the ULQ2801Ais designed for generalpurpose applications with a current limit resistor ; theULQ2802Ahas a 10.5kW inputresistor and zener for 14-25VPMOS ; theULQ2803Ahas a 2.7kW input resistor for 5V TTL and CMOS ; the ULQ2804A has a 10.5kW input  esistor for 6-15V CMOS and the ULQ2805A is designed to sink a minimum of 350mA for standard and Schottky TTL
where higher output current is required.

All types are supplied in a 18-lead plastic DIP with a copper lead frame and feature the convenient input- opposite-outputpinout to simplify board layout.

Parameters:

Technical/Catalog Information	ULQ2802A
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Number of Drivers/Receivers	8/0
Type	Darlington Array
Voltage - Supply	-
Package / Case	18-DIP (300 mil)
Packaging	Tube
Protocol	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ULQ2802A ULQ2802A 497 6789 5 ND 49767895ND 497-6789-5
