Features: · 8192 x 8 bit static CMOS RAM· 250 and 500 ns Access Times· Common data inputs and data outputs· Three-state outputs· Typ. operating supply current: 250ns: 12 mA 500 ns: 7 mA· Standby current < 5 mA· Standby current at 25 °C and 3.3 V: typ. 50 nA· TTL/CMOS-compatible· Automatic reduc...
UL6264A: Features: · 8192 x 8 bit static CMOS RAM· 250 and 500 ns Access Times· Common data inputs and data outputs· Three-state outputs· Typ. operating supply current: 250ns: 12 mA 500 ns: 7 mA· Standby cur...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Maximum Ratings |
Symbol |
Min. |
Max. |
Unit |
Power Supply Voltage Input Voltage Output Voltage Power Dissipation |
VCC VI VO PD |
-0.3 -0.3 -0.3 |
7 VCC + 0.5 VCC + 0.5 1 |
V V V W |
Operating Temperature C-Type G-Type K-Type |
Ta |
0 -25 -40 |
70 85 85 |
°C °C °C |
Storage Temperature |
Tstg |
-55 |
125 |
°C |

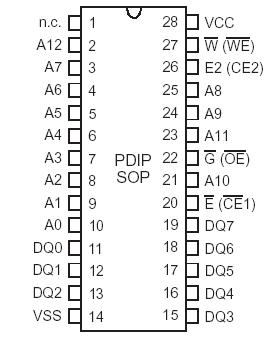

The UL6264A is a static RAM manufactured using a CMOS process technology with the following operating modes:
- Read - Standby
- Write - Data Retention The memory array is based on a 6-transistor cell.
The circuit UL6264A is activated by the rising edge of E2 (at E1 = L) or the falling edge of E1 (at E2 = H). The address and control inputs open simultaneously. According to the information of W and G the data inputs, or outputs, are active. In the active stateE1 = L and E2 = H, each address change leads to a new Read or Write cycle. In a Read cycle, the data outputs are activated by the falling edge of G, afterwards the data word read will be available at the outputs DQ0 - DQ7. After the address change, the data outputs go High-Z until the new read information is available. The data outputs have no preferred state. If the memory is driven by CMOS levels in the active state, and if there is no change of the address, data input and control signals W or G, the operating current (at IO = 0 mA) drops to the value of the operating current in the Standby mode. The Read cycle is finished by the falling edge of E2 or W, or by the rising edge of E1, respectively.
Data retention is guaranteed down to 2 V.
With the exception of E2, all inputs consist of NOR gates, so that no pull-up/pull-down resistors are required. This gate circuit allows to achieve low power standby requirements by activation with TTL-levels too.
If the circuit is inactivated by E2 = L, the standby current (TTL) drops to 100 mA typ.
