UCC5641

Features: • First LVD only Active Terminator• Meets SCSI SPI-2 Ultra2 (Fast-40) and Ultra3 / Ultra160 (Fast-80) Standards• 2.7V to 5.25V Operation• Differential Failsafe Bias• Reversed Disconnect PolaPinoutSpecificationsTERMPWR Voltage. . . . . . . . . . . . . . . . ....

product image

UCC5641 Picture
See larger image
SeekIC No. : 004536163 Detail

UCC5641: Features: • First LVD only Active Terminator• Meets SCSI SPI-2 Ultra2 (Fast-40) and Ultra3 / Ultra160 (Fast-80) Standards• 2.7V to 5.25V Operation• Differential Failsafe Bias...

UCC5641 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UCC5641
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• First LVD only Active Terminator
• Meets SCSI SPI-2 Ultra2 (Fast-40)
  and Ultra3 / Ultra160 (Fast-80) Standards
• 2.7V to 5.25V Operation
• Differential Failsafe Bias
• Reversed Disconnect Pola


Pinout

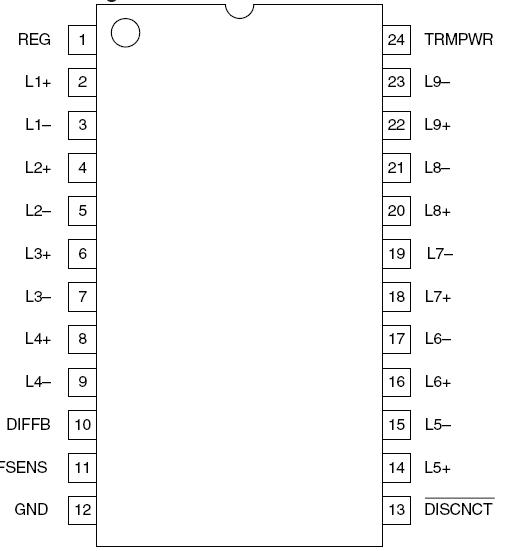

Connection Diagram


Specifications

TERMPWR Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   +6V
Signal Line Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . 0V to 3.6V
Package Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1W
Storage Temperature . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Junction Temperature. . . . . . . . . . . . . . . . . . . 55°C to +150°C
Lead Temperature (Soldering, 10 sec.) . . . . . . . . . . . . . +300°C


Description

The UCC5641 is an active terminator for Low Voltage Differential (LVD) SCSI networks. This LVD only design allows the user to reach peak bus performance while reducing system cost. The device is designed as an active Y-terminator to improve the frequency response of the LVD Bus. Designed with a 1.5pF channel capacitance, the UCC5641 allows for minimal bus loading for a maximum number of peripherals. With the UCC5641, the designer will be able to comply with the Fast-40 SPI-2 and Fast-80 SPI-3 specifications. The UCC5641 also provides a much-needed system migration path for ever improving SCSI system standards. This device is available in the 24 pin TSSOP and 28 pin TSSOP for ease of layout use.

The UCC5641 is not designed for use in single ended or high voltage differential systems.
