UCC5630

Features: · Auto Selection Multi-Mode Single Ended or Low Voltage Differential Termination· 2.7V to 5.25V Operation· Differential Failsafe Bias· Thermal Packaging for Low Junction Temperature and Better MTBF· Master/Slave Inputs· Supports Active Negation· Standby (Disable Mode) 5mA· 3pF Channel Ca...

product image

UCC5630 Picture
See larger image
SeekIC No. : 004536158 Detail

UCC5630: Features: · Auto Selection Multi-Mode Single Ended or Low Voltage Differential Termination· 2.7V to 5.25V Operation· Differential Failsafe Bias· Thermal Packaging for Low Junction Temperature and Be...

UCC5630 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UCC5630
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Auto Selection Multi-Mode Single Ended or Low Voltage Differential Termination
· 2.7V to 5.25V Operation
· Differential Failsafe Bias
· Thermal Packaging for Low Junction Temperature and Better MTBF
· Master/Slave Inputs
· Supports Active Negation
· Standby (Disable Mode) 5mA
· 3pF Channel Capacitance


Pinout

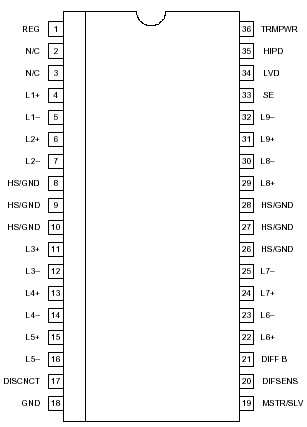

Connection Diagram


Specifications

TRMPWR Voltage . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . 6V
Signal Line Voltage . . . . . . . . . . . . . . . . . . . . . 0V to TRMPWR
Package Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . 2W
Storage Temperature . . . . . . . . . . . . . . . . 65°C to +150°C
Junction Temperature. . . . . . . . . . . . . . . .. 55°C to +150°C
Lead Temperature (Soldering, 10sec.) . . . . . . . . . . . . +300°C


Description

The UCC5630 Multi-Mode Low Voltage Differential and Single Ended Terminator is both a single ended terminator and a low voltage differential terminator for the transition to the next generation SCSI Parallel Interface (SPI-2). The low voltage differential is a requirement for the higher speeds at a reasonable cost and is the only way to have adequate skew budgets. The transceivers can be incorporated into the controller, unlike SCSI high power differential (EIA485) which requires external transceivers. Low Voltage differential is specified for Fast-40 and Fast-80, but has the potential of speeds up to Fast-320.

The UCC5630 is SPI-2, SPI and Fast-20 compliant. Consult SSOP-36 and LQFP-48 Package Diagram for exact dimensions. The UCC5630 can not be used with SCSI high voltage differential (HVD) EIA485. It will shut down when it sees high power differential to protect the bus. The pinning for high power differential is not the same as LVD or single ended and the bias voltage, current and power are also different for EIA485 differential.
