UCC5510

Features: • Auto Selection Multi-Mode Single Ended or Low Voltage Differential Termination• 3.0V to 5.25V Operation• Differential Failsafe Bias• Thermal Packaging for Low Junction Temperature and Better MTBF• Master/Slave Inputs• Supports Active Negation• ...

product image

UCC5510 Picture
See larger image
SeekIC No. : 004536141 Detail

UCC5510: Features: • Auto Selection Multi-Mode Single Ended or Low Voltage Differential Termination• 3.0V to 5.25V Operation• Differential Failsafe Bias• Thermal Packaging for Low Jun...

UCC5510 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UCC5510
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Auto Selection Multi-Mode Single
  Ended or Low Voltage Differential Termination
• 3.0V to 5.25V Operation
• Differential Failsafe Bias
• Thermal Packaging for Low Junction
  Temperature and Better MTBF
• Master/Slave Inputs
• Supports Active Negation
• 3pF Channel Capacitance


Pinout

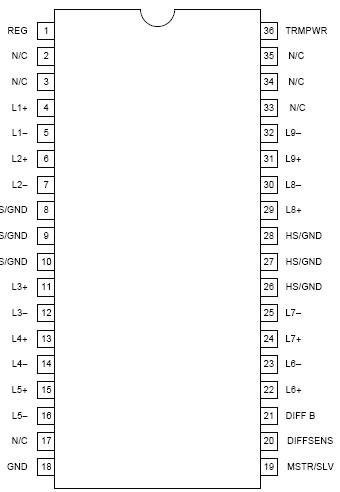

Connection Diagram


Specifications

TRMPWR Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   6V
Signal Line Voltage . . . . . . . . . . . . . . . . . . . . .  .  0V to TRMPWR
Package Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . .  2W
Storage Temperature . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Junction Temperature. . . . . . . . . . . . . . . . . . . 55°C to +150°C
Lead Temperature (Soldering, 10sec.) . . . . . . . . . . . . . +300°C


Description

The UCC5510 Multi-Mode Low Voltage Differential and Single Ended Terminator is specially designed for automatic termination of Single- Ended or Low Voltage Differential SCSI Bus. The Multi-Mode operation of this device allows for a transition system design for the next generation SCSI Parallel Interface (SPI-2). Compliant with SPI-2, with SPI and Fast- 20 the UCC5510 incorporates all the functions necessary to properly terminate the SCSI Bus and has internal thermal shut down and short circuit limiting.
