Features:

· Meets EIA 232E/423A/422A and CCITT V.10,V.11, V.28, X.26, X.27
· Single +5V Supply--TTL Compatible Outputs
· Differential Inputs Withstand ± 25V
· Low Open Circuit Voltage for Improved Failsafe Characteristic
· Reduced Supply Current--35 mA Max
· Input Noise Filter
· Internal Hysteresis


Pinout

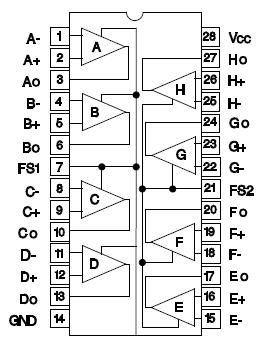

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V
Output Sink Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Output Short Circuit Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Sec
Common Mode Input Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15V
Differential Input Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 25V
Failsafe Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  -0.3 to VCC
PLCC Power Dissipation, TA = 25°C (Note 2). . . . . . . . . . . . . . . . . .. 1000 mW
DIP Power Dissipation, TA = 25°C (Note 2) . . . . . . . . . . . . . . . . . . .. 1200 mW
Storage Temperature Range. . . . . . . . . . . . . . . . . . . . . . .  . -65°C to +150°C
Lead Temperature (Soldering, 10 Seconds) . . . . . . . . . . . . . . . . . . . . . -300°C

Note 1: All voltages are with respect to ground, pin 14. Currents are positive into, negative out of the specified terminal
Note 2: Consult Packaging Section of Databook for thermal limitations and considerations of package.


Description

The UC5180C is an octal line receiver designed to meet a wide range of digital communications requirements as outlined in EIA standards EIA232E, EIA423A, EIA422A, and CCITT V.10, V.11, V.28, X.26, and X.27. The UC5180C includes an input noise filter and is intended for applications employing data rates up to 200 KBPS. A failsafe function allows these devices to "fail" to a known state under a wide variety of fault conditions at the inputs.
