Product Details

Description



Features:

· Eight Single Ended Line Drivers in One Package
· Meets EIA Standards EIA232E/V.28, EIA423A and CCITT V.10/X.26
· Single External Resistor Controls Slew Rate
· Wide Supply Voltage Range
· Tri-State Outputs
· Output Short-Circuit Protection

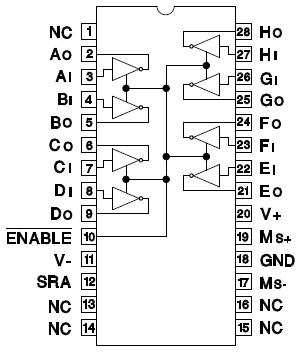

Pinout

Connection Diagram


Specifications

V+ (Pin 20) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . 15V
V- (Pin 11). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -15V
PLCC Power Dissipation, TA = 25°C (Note 2) . . . . . . .1000 mW
DIP Power Dissipation, TA = 25°C (Note 2) . . . . . . . . 1250 mW
Input Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . -1.5V to +7V
Output Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . -12V to +12V
Slew Rate Resistor . . . . . . . . . . . . . . . . . . . . . . . . . . 2k to 10k
Storage Temperature . . . . . . . . . . . . . . . . .. -65°C to +150°C

Note 1: All voltages are with respect to ground, pin 18.
Note 2: Consult Packaging Section of Databook for thermal limitations and considerations of packages.


Description

The UC5170C is a single-ended octal line driver designed to meet both standard modem control applications (EIA232E/V.28), and long line drive applications (EIA423A/V.10/X.26). The slew rate for all eight drivers is controlled by a single external resistor. The UC5170C slew rate and output levels in Low Mode are independent of the power variations.

UC5170C Mode selection is easily accomplished by taking the select pins (MS+ and MS-) to ground for low output mode (EIA232E/V.28 and EIA423A/V.10) or  to their respective supplies for high mode (EIA232E/V.28). High mode should only by used to drive adapters that take power from the control lines, or applications using high threshold receivers.
