UBA1707

Features: Line interface` Low DC line voltage; operates down to 1.2 V (excluding polarity guard)` Voltage regulator with adjustable DC voltage` DC mask for voltage or current regulation (CTR 21)` Line current limitation for protection` Electronic hook switch control input` Transmit amplifier with:...

product image

UBA1707 Picture
See larger image
SeekIC No. : 004535282 Detail

UBA1707: Features: Line interface` Low DC line voltage; operates down to 1.2 V (excluding polarity guard)` Voltage regulator with adjustable DC voltage` DC mask for voltage or current regulation (CTR 21)` Li...

UBA1707 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UBA1707
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Line interface
` Low DC line voltage; operates down to 1.2 V (excluding polarity guard)
` Voltage regulator with adjustable DC voltage
` DC mask for voltage or current regulation (CTR 21)
` Line current limitation for protection
` Electronic hook switch control input
` Transmit amplifier with:
   Symmetrical inputs
   Fixed gain
   Large signals handling capability.
` Receive amplifier with fixed gain
` Transmit and receive amplifiers AGC for line loss compensation.
Auxiliary amplifier
` Fixed gain.
Loudspeaker channel
` Dual inputs
` Rail-to-rail output stage for single-ended load drive
` High output current capability
` Dynamic limiter to prevent distortion
` Digital volume control
` Fixed maximum gain.
General purpose switches
` Three switches with open-collector.
3-wires serial bus interface
    Allows to control:
` DC mask (voltage or current regulation)
` Receive amplifier mute function
` AGC:
     On/off
     Slope
    Istart line current.
` Auxiliary amplifier mute function
` Loudspeaker channel:
   Input selection
   Volume setting
   Dynamic limiter inhibition
   Power-down mode.
` General purpose switches state
` Global power-down mode.
Supply
Operates with external supply voltage from 3.0 to 5.5 V.


Application

· Cordless base stations
· Answering machines
· Mains or battery-powered telephone sets


Pinout

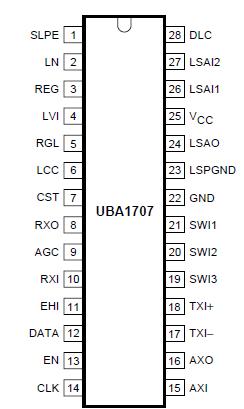

Connection Diagram


Specifications

Symbol
Parameter
CONDITIONS
Min.
Max.
Unit
VCC
 supply voltage on pin VCC
GND - 0.4
5.5
V
VLN
 positive continuous line voltage on pin LN
GND - 0.4
12.0
V
repetitive line voltage during switch-on or
line interruption
GND - 0.4
13.2
V
VSWIn
 voltage on pins SWI1 SWI2 and SWI3 continuous
GND - 0.4
12.0
V
during switching
GND - 0.4
13.2
V
Vn(max)
 maximum voltage on all other pins
GND - 0.4
VCC+4
V
ILN
 current sunk by pin LN see Figs 14 and 15
-
150
mA
ISWIn
 continuous current sunk by pins SWI1 and SWI2 bit SWCn = 1
-
20
mA
Ptot
 total power dissipation
UBA1707T
UBA1707TS		 Tamb = 75 °C; see Fig 14 and 15
-
-
625
416
mW
mW
Tstg
 IC storage temperature
-40
+125
Tamb
 ambient temperature
-25
+75



Description

The UBA1707 is a BiCMOS integrated circuit intended for use in mains-powered telecom terminals. It performs all speech and line interface functions, DC mask for voltage or current regulation and electronic hook switch control. The device includes an auxiliary amplifier, a loudspeaker channel and general purpose switches.

Most of the characteristics are programmable via a 3-wire serial bus interface.
