U631H16

 ` High-performance CMOS nonvolatile static RAM 2048 x 8 bits
 ` 25, 35 and 45 ns Access Times
 ` 12, 20 and 25 ns Output Enable Access Times
 ` Software STORE Initiation (STORE Cycle Time < 10 ms)
 ` Automatic STORE Timing
 ` 10⁵ STORE cycles to EEPROM
 ` 10 years data retention in EEPROM
 ` Automatic RECALL on Power Up
 ` Software RECALL Initiation (RECALL Cycle Time < 20 s)
 ` Unlimited RECALL cycles from EEPROM
 ` Unlimited Read and Write to SRAM
 ` Single 5 V ± 10 % Operation
 ` Operating temperature ranges:
                                       0 to 70 °C
                                    -40 to 85 °C
 ` CECC 90000 Quality Standard
 ` ESD characterization according
 ` MIL STD 883C M3015.7-HBM (classification see IC Code Numbers)

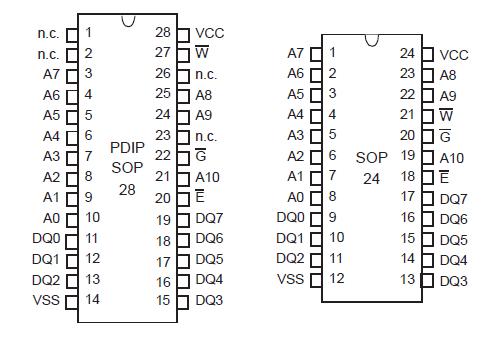

 ` Packages: PDIP28 (300 mil)
                      PDIP28 (600 mil)
                       SOP28 (300 mil)
                       SOP24 (300 mil)

a: Stresses greater than those listed under „Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only, and functional operation of the device at condition above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

The U631H16 has two separate modes of operation: SRAM mode and nonvolatile mode. In SRAM mode, the memory operates as an ordinary static RAM. In nonvolatile operation, data is transferred in parallel from SRAM to EEPROM or from EEPROM to SRAM. In this mode SRAM functions of U631H16 are disabled.

The U631H16 is a fast static RAM (25, 35, 45 ns), with a nonvolatile electrically erasable PROM (EEPROM) element incorporated in each static memory cell. The SRAM U631H16 can be read and written an unlimited number of times, while independent nonvolatile data resides in EEPROM.

Data transfers from the SRAM U631H16 to the EEPROM (the STORE operation),or from the EEPROM to the SRAM (the RECALL ) operation) are initiated through software sequences.

The U631H16 combines the high performance and ease of use of a fast SRAM with nonvolatile data integrity.

Once a STORE cycle U631H16 is initiated, further input or output are disabled until the cycle is completed. Because a sequence of addresses is used for STORE initiation, it is important that no other read or write accesses intervene in the sequence or the sequence will be aborted.

Internally, RECALL U631H16 is a two step procedure. First, the SRAM data is cleared and second, the nonvolatile information is transferred into the SRAM cells.

The RECALL U631H16 operation in no way alters the data in the EEPROM cells. The nonvolatile data can be recalled an unlimited number of times.
