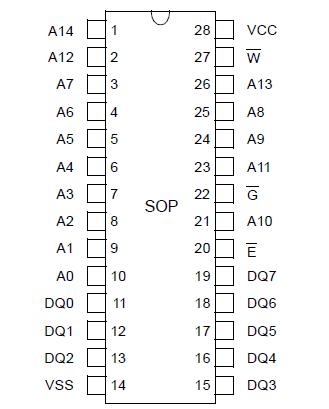

U62H256A

a Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to  the device. This is a stress rating only,and functional operation of the device at condition above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability

b Maximum voltage is 7 V

c Not more than 1 output should be shorted at the same time. Duration of the short circuit should not exceed 30 s.

The U62H256A is a static RAM manufactured using a CMOS process technology with the following
operating modes:
  - Read            - Standby
  - Write           - Data Retention
The memory array is based on a 6-transistor cell.

The U62H256A is activated by the falling edge of E. The address and control inputs open simultaneously.According to the information of W and G, the data inputs, or outputs,are active. In a Read cycle, the data outputs are activated by the
falling edge of G, afterwards the data of U62H256A word will be available at the outputs DQ0-DQ7. After the address change, the data outputs go High-Z until the new information is available. The data outputs have no preferred state. The Read cycle of U62H256A is finished by the falling edge of W,or by the rising edge of E, respectively.

Data retention of U62H256A is guaranteed down to 2 V. With the exception of E, all inputs consist of NOR gates, so that no pull-up/pull-down resistors are required.
