U4468B

Features: • 5-V Supply Voltage• Gain-controlled 3-stage Wide-band IF Amplifier• Active Carrier Generation by FPLL Principle (Frequency-Phase-Locked-Loop) for True Quadrature Demodulation• Complete Alignment-free AM Demodulator• Switchable Amplitude Detector for Gain C...

product image

U4468B Picture
See larger image
SeekIC No. : 004534906 Detail

U4468B: Features: • 5-V Supply Voltage• Gain-controlled 3-stage Wide-band IF Amplifier• Active Carrier Generation by FPLL Principle (Frequency-Phase-Locked-Loop) for True Quadrature Demodu...

U4468B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U4468B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 5-V Supply Voltage
• Gain-controlled 3-stage Wide-band IF Amplifier
• Active Carrier Generation by FPLL Principle (Frequency-Phase-Locked-Loop) for True Quadrature Demodulation
• Complete Alignment-free AM Demodulator
• Switchable Amplitude Detector for Gain Control, which Operates as a Peak Detector for FM Sound and as a Mean Level Detector for AM Sound




Pinout

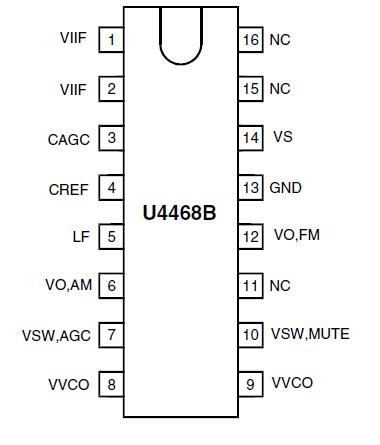

Connection Diagram


Specifications

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.Reference point pin 13, unless otherwise specified.

Parameters

Pin
Symbol
Value
Unit
Supply voltage range

14
VS
4.5to9.0
V
Supply current

14
IS
55
mA
Power dissipation (VS=9V)
P
500
mW
Output currents

6,12
Iout
5
mA
External voltages

1-4,6,12
Vext
+4.5
V

5,8,9
+3.5
V

7,10
VS
V
Junction temperature
Tj
+125
Operating temperature
Tamb
0to+85
Storage temperature
Tstg
25 to +125
Electrostatic handling(1)

All
VESD
±300
V
Note: 1. Equivalent to discharging a 200-pF capacitor through a 0- resistor


Description

The U4468B is an integrated bipolar circuit for full multistandard sound IF signal processing in TV/VTR and multimedia applications. U4468B supplies AM signals as well as FM/NICAM sound IF signals and thus allows the design of a universal sound IF module for various applications.
