U4460BG-M

Features: Active carrier generation by FPLL principle (frequency-phase-locked-loop) for true synchronous demodulationVery linear video demodulation, good pulse response and excellent intermodulation figuresVCO operates on picture carrier frequencyAlignment-free AFC, no external reference circuitVI...

product image

U4460BG-M Picture
See larger image
SeekIC No. : 004534903 Detail

U4460BG-M: Features: Active carrier generation by FPLL principle (frequency-phase-locked-loop) for true synchronous demodulationVery linear video demodulation, good pulse response and excellent intermodulation...

U4460BG-M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U4460BG-M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Active carrier generation by FPLL principle (frequency-phase-locked-loop) for true synchronous demodulation
Very linear video demodulation, good pulse response and excellent intermodulation figures
VCO operates on picture carrier frequency
Alignment-free AFC, no external reference circuit
VIFAGC with peak sync. detection
Tuner AGC with adjustable take over point
5 V supply voltage; low power consumption
Relevant pinning is compatible with the TDA4474 /71 video-/ sound IF combination


Pinout

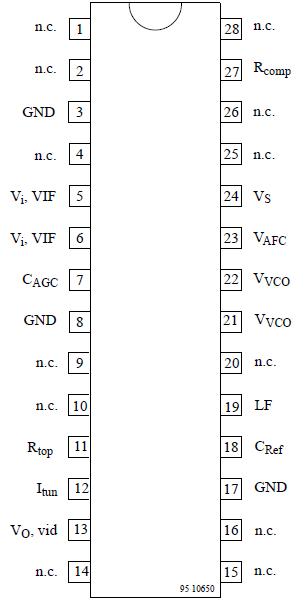

Connection Diagram


Specifications

Parameters Symbol Value Unit
Supply voltage                            Pin 24 Vs 9.0 V
Supply current                            Pin 24 Is 93 mA
Power dissipation, Vs = + 9 V P 840 mW
Output currents                         Pin 13 Iout 5 mA
External voltages                      Pin 5, 6, 7, 11, 13, 18, 19, 27   + 4.5 V
                                                 Pin 21, 22 Vext + 3.5 V
                                                 Pin 12   + 13.5 V
                                                 Pin 20,23   Vs V
Junction temperature Tj +125 °C
Storage temperature Tstg 25 to +125 °C
Electrostatic handling *)           all pins VESD ±300 V
*) Equivalent to discharging a 200 pF capacitor through a 0 resistor


Description

The U4460BG is an integrated bipolar circuit for video IF (VIF) signal processing in TV/VCR and multimedia applications.

The U4460BG processes all TV video IF signals with negative modulation (e.g., B/G standard).
