Product Details

Description



Features:

Gain-controlled 3-stage wideband IF amplifier
Complete alignment-free AM demodulator without external reference circuit
AGC with a mean level detector
Mute switch
5-V power supply, low power consumption

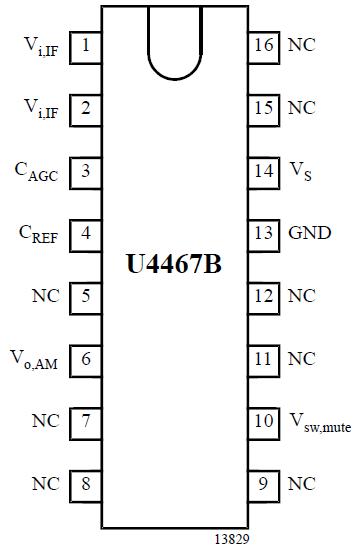

Pinout

Connection Diagram


Specifications

Parameters Symbol Value Unit
Supply voltage Pin 14 Vs 4.5 to 9.0 V
Supply current Pin 14 Is 40 mA
Power dissipation, Vs = + 9 V P 360 mW
Output currents Pin 6 Iout 5 mA
External voltages Pin 1, 2, 3, 4 and 6 + 4.5 V
Pin 10 Vext Vs V
Junction temperature Tj +125 °C
Operating temperature range Tamb 0 to + 85 °C
Storage temperature Tstg 25 to +125 °C
Electrostatic handling *) all pins VESD ±300 V
*) Equivalent to discharging a 200 pF capacitor through a-0 resistor


Description

The U4467B is an integrated bipolar circuit for AM sound demodulation used in the L and L' standard (France). The IC provides the audio signal and mute switch as well.

The U4467B is designed for TV-, VCR- and Multimedia applications.
