Features:

`Reference oscillator up to 15 MHz
`Two programmable 16 bit dividers adjustable from 2 to 65535
`Fine tuning steps: AM 1 kHz
FM 2 kHz
`Two programmable switching outputs (open drain up o 20 V)
`Few external component requirements due to ntegrated loop-transistor for AM/FM
`High signal/ noise ratio

Pinout

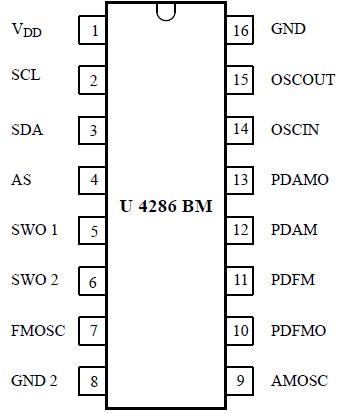

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
Supply voltage Pin 1	V_DD	0.3 to +6	V
Input voltage Pins 2, 3, 4, 6, 8, 14,15	V_I	0.3 to V_DD + 0.3	V
Output current Pins 3,5,6	I₀	1 to +5	mA
Output drain voltage Pins 5,6	V_OD	20	V
Output voltage Pins 10,13	V_AO	15	V
Output current Pins 10,13	I_AO	1 to +20	mA
Ambient temperature	T_amb	25 to +85	°C
Storage temperature	T_stg	40 to +125	°C
Junction temperature	T_j	125	°C
Electrostatic handling (MIL Standard 883C)	±V_ESD	2000	V

Description

The U4286BM is an integrated circuit in BICMOS technology for frequency synthesizer. It performs all the functions of a PLL radio tuning system and is controlled by I²C bus. The U4286BM is designed for all frequency synthesizer applications of radio receivers, as well as RDS ( Radio Data System ) applications.
