U4285BM

Features: ` Reference oscillator up to 15 MHz` Two programmable 16 bit dividers adjustable from 2 to 65535` Fine tuning steps: AM 1 kHzFM 2 kHz`4 programmable switching outputs (open drain up to 15 V)` Few external component required due to integrated loop-push-pull stage for AM/FM` High signal/ n...

product image

U4285BM Picture
See larger image
SeekIC No. : 004534890 Detail

U4285BM: Features: ` Reference oscillator up to 15 MHz` Two programmable 16 bit dividers adjustable from 2 to 65535` Fine tuning steps: AM 1 kHzFM 2 kHz`4 programmable switching outputs (open drain up to 15 ...

U4285BM Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U4285BM
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Reference oscillator up to 15 MHz
` Two programmable 16 bit dividers adjustable from 2 to 65535
` Fine tuning steps:
                    AM  1 kHz
                    FM  2 kHz
`4 programmable switching outputs (open drain up to 15 V)
` Few external component required due to integrated loop-push-pull stage for AM/FM
` High signal/ noise ratio




Pinout

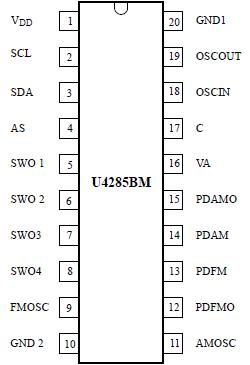

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Supply voltage Pin 1
VDD
0.3 to +6
V
Input voltage Pins 2, 3, 4, 9, 11, 18 and 19
VI
0.3 to VDD + 0.3
V
Output current Pins 3, 5, 6, 7 and 8
I0
1 to +5
mA
Output drain voltage Pins 5, 6, 7 and 8
VOD
15
V
Analogue supply voltage Pin 16
with 220 seriell resistance 2 minutes 1
VA
6 to 15
V
VA
25
V
Output current Pins 12 and 15
IAO
1 to +20
mA
Ambient temperature
Tamb
25 to +85
°C
Storage temperature
Tstg
40 to +125
°C
Junction temperature
Tj
125
°C
Electrostatic handling (MIL Standard 883D
method 3015.7: all supply pins connected together) )
±VESD
1000
V



Description

The U4285BM is an integrated circuit in BICMOS technology for frequency synthesizers. It performs all the functions of a PLL radio tuning system and is controlled by an I2C bus. The U4285BM is designed for all frequency synthesizer applications in radio receivers, as well as RDS ( Radio Data System ) applications.
