U3761MB-T

Features: Speech Circuit• Adjustable DC Characteristic• Symmetrical Input of Microphone Amplifier• Receiving Amplifier for Dynamic or Piezo-electric Earpieces• Automatic Line-loss CompensationDialer• DTMF/Pulse Switchable• Pulse Dialing 66/33 or 60/40 or DTMF Di...

product image

U3761MB-T Picture
See larger image
SeekIC No. : 004534822 Detail

U3761MB-T: Features: Speech Circuit• Adjustable DC Characteristic• Symmetrical Input of Microphone Amplifier• Receiving Amplifier for Dynamic or Piezo-electric Earpieces• Automatic Line...

U3761MB-T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U3761MB-T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Speech Circuit
• Adjustable DC Characteristic
• Symmetrical Input of Microphone Amplifier
• Receiving Amplifier for Dynamic or Piezo-electric Earpieces
• Automatic Line-loss Compensation
Dialer
• DTMF/Pulse Switchable
• Pulse Dialing 66/33 or 60/40 or DTMF Dialing Selectable by Pin
• Selectable Flashing Duration by Key Pad
• Pause Function
• Optical Indication of Temporary DTMF Mode
• Keytone for Pulse Dialing
• Last Number Redial up to 32 Digits
• Three by 17 Digits Direct (One-touch) Memory
• Ten by 17 Digits Indirect (Two-touch) Memory
• Notice Function up to 32 Digits
• Standard Low-cost Crystal 3.58 MHz or Ceramic Resonator
• Handset Mute (Privacy) with Optical Indication
• Additional Toggle Flipflop
• Internal Loop Interrupt Detection
Tone Ringer
• 2-tone Ringer
• Adjustable Volume
• RC Oscillator
• Adjustable Threshold
Benefits
• Low Number of External Components
• High Quality through One IC Solution


Pinout

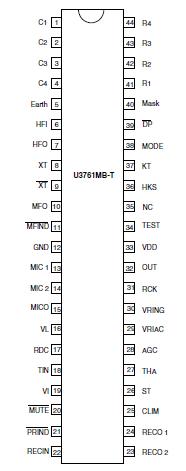

Connection Diagram


Specifications

Parameters
Symbol
Value
Unit
Line current
IL
140
mA
DC line voltage
VL
14
V
DC voltage at pins 1 to 11 and 33 to 44
VDC
5.5
V
Junction temperature
Tj
+125
°C
Ambient temperature
Tamb
25 to +75
°C
Storage temperature
Tstg
55 to +150
°C
Total power dissipation, Tamb = 60°C SSO44
Ptot
0.9
W
Junction ambient SSO44
RthJA
70
K/W

Note: ESD withstand voltage 1 kV according to ESD standard S5.1 (HBM)


Description

Atmel's low-voltage telephone circuit U3761MB-T performs all the speech and line interface functions required in an electronic telephone set, a tone ringer, a pulse and DTMF dialing with redial, notice function, and 13 memories. Operation of U3761MB-T below 15 mA is possible with reduced performance.
