U3762MB

Features: Adjustable DC characteristic Symmetrical input of microphone amplifier Receiving amplifier for dynamic or piezo-electric earpieces Automatic line-loss compensation Anti-clipping in transmit directionPinoutSpecifications Parameters Symbol Value Unit Line current IL 140 mA ...

product image

U3762MB Picture
See larger image
SeekIC No. : 004534823 Detail

U3762MB: Features: Adjustable DC characteristic Symmetrical input of microphone amplifier Receiving amplifier for dynamic or piezo-electric earpieces Automatic line-loss compensation Anti-clipping in transmi...

U3762MB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U3762MB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Adjustable DC characteristic
Symmetrical input of microphone amplifier
Receiving amplifier for dynamic or piezo-electric earpieces
Automatic line-loss compensation
Anti-clipping in transmit direction


Pinout

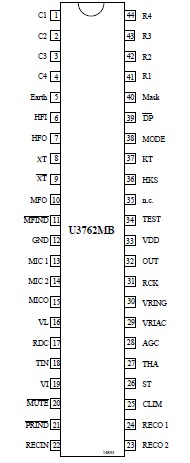

Connection Diagram


Specifications

Parameters Symbol Value Unit
Line current IL 140 mA
DC line voltage VL 14 V
Junction temperature Tj 125 °C
Ambient temperature Tamb 25 to +75 °C
Storage temperature Tstg 55 to +150 °C
Total power dissipation, Tamb = 60°C                          SSO44 Ptot 0.9 W
Junction ambient SSO44 RthJA 7.0 K/W



Description

TEMIC's low-voltage telephone circuit U3762MB performs all the speech and line interface functions required in an electronic telephone set, the tone ringer, the pulse and DTMF dialing with redial. Operation below 15 mA is possible with reduced performance (no dialing).
