U2763B

Features:

0-dBm PA and RX/TX VCO integrated
Buffer for PLL and mixer integrated
Supply-voltage range 2.7 V to 3.3 V
Low current consumption, typical 16 mA
SSO20 package

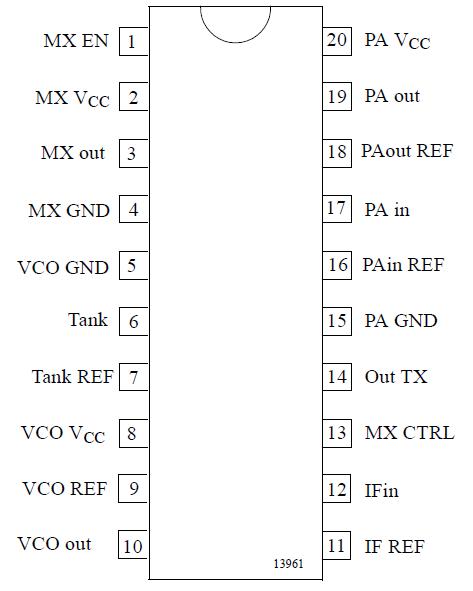

Pinout




Specifications

Parameters	Symbol	Value	Unit
Supply voltage	VCC	0 to +5	V
Input voltages        Pins 1 and 13	Vin	0 to VCC	V
Input voltages        Pins 3, 6, 7, 9, 10, 11, 12, 14, 16, 17, 18 and 19	Vin	0.5 to VCC 1 V	V
Junction temperature	Tj	125	°C
Storage1temperature range	Tstg	40 to +125	°C

Description

The transmitter IC U2763B is specifically designed for cordless telephone applications in the 900-MHz ISM band. The U2763B is manufactured using TEMIC Semiconductors' advanced UHF process. It consists of a 900-MHz VCO and mixer, 0-dBm PA and buffers. The device features 2.9-V operation. In conjunction with TEMIC Semiconductors' receiver IC U2762B and the PLL U2781B, a complete ISM RF IC kit is available which fits perfectly with AMD's PhoX controllers AM79C432A and AM79C433.

Electrostatic sensitive U2763B. Observe precautions for handling.
