Product Details

Description



Features:

· Supply-voltage range 2.7 to 5.5 V
· Low current consumption
· Few external components
· On-chip baseband filter
· LO switch and TX preamplifier
· Ramp-signal generator for power amplifier

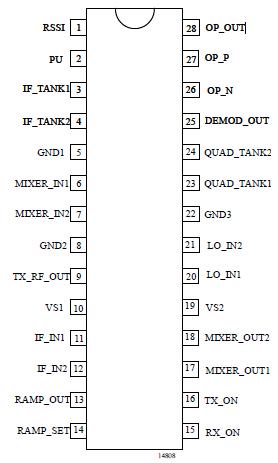

Pinout

Connection Diagram


Specifications

Parameters
Symbol
Value
Unit
Supply voltage pins 10 and 19
VS
6
V
Junction temperature
Tj
125
°C
Storage temperature range
Tstg
40 to 125
°C



Description

The U2761B is an integrated circuit manufactured in TEMIC's UHF5S technology, designed for DECT application. U2761B contains rejection mixer, IF amplifier, FM demodulator, baseband filter, RSSI, TX preamplifier and power-ramping generator for power amplifier.
