Product Details

Description



Features:

· 9 V supply voltage
· Frequency range from 48 to 860 MHz
· Band A: balanced high impedance mixer input and  amplitude controlled oscillator
· Band B + C: balanced low impedance mixer input and symmetrical oscillator
· Balanced L. O.-outputs for prescalers or PLL
· SAW filter driver with low impedance output
· Voltage regulator for stable operating characteristics
· ESD protection on all pins except oscillator pins and RF-inputs

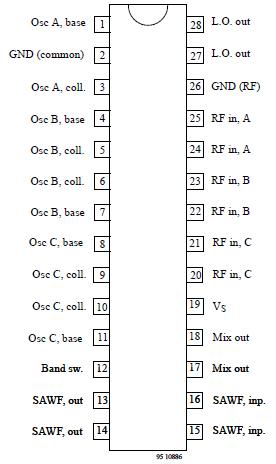

Pinout

Connection Diagram


Specifications

Parameters
Symbol
Min.
Typ.
Max.
Unit
Supply voltage Pin 19
VS
10.5
V
RF inputs Pin (20-25)
5.0
V
IF outputs Pin 17-18
10.5
V
Tri-state switch voltage Pin 12
ViTRI
10.5
V
Junction temperature
Tj
125
°C
Storage temperature
Tstg
40
125
°C



Description

This U2309B tuner IC requires a power supply of 9 V and performs the function of three separate oscillators an mixers, SAWF-driver, L.O.-output and tri-state band switch. Additional to TV-tuner application this U2309B IC is usable for DAB (Digital Audio Broadcast) tuners.
