U2305B

Features: 5 V supply voltage Frequency range from 48 to 860 MHz Band A: balanced high impedance mixer input and amplitude controlled oscillator Band B + C: balanced low impedance mixer input and symmetrical oscillator Balanced L. O.-outputs for prescalers or PLL SAW filter driver with low impedanc...

product image

U2305B Picture
See larger image
SeekIC No. : 004534692 Detail

U2305B: Features: 5 V supply voltage Frequency range from 48 to 860 MHz Band A: balanced high impedance mixer input and amplitude controlled oscillator Band B + C: balanced low impedance mixer input and sym...

U2305B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U2305B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 5 V supply voltage
Frequency range from 48 to 860 MHz
Band A: balanced high impedance mixer input and amplitude controlled oscillator
Band B + C: balanced low impedance mixer input and symmetrical oscillator
Balanced L. O.-outputs for prescalers or PLL
SAW filter driver with low impedance output
Voltage regulator for stable operating characteristics
ESD protection on all pins except oscillator pins and RF-inputs


Pinout

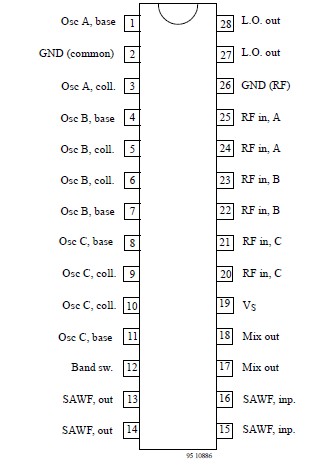

Connection Diagram


Specifications

All voltages are referred to GND, Pin 2

Parameters Symbol Min. Typ. Max. Unit
Supply voltage Pin 19 VS     5.25 V
RF inputs Pin (20-25)       VS V
IF outputs Pin 17-18       5.5 V
Tri-state switch voltage Pin 12 ViTRI     VS V
Junction temperature Tj     125 °C
Storage temperature Tstg 40   125 °C



Description

This U2305B tuner IC requires a power supply of 5 V and performs the function of three separate oscillators an mixers, SAWF-driver, L.O.-output and tri-state band switch. This U2305B tuner IC is decigned for high performance tuners for TV, VCR and PCs.
