Product Details

Description

Features:

· PLL with short lock-in time; no asynchronous divider stage
·Fast I²C bus mode possible
·4 programmable chip addresses
·Short pull-in time for quick channel access and optimized loop stability
· 3 high-current switch outputs
· 2 TTL inputs
· 5-level A/D converter
· Lock-in flag
· Power-down flag
· Few external components
· Frequency and amplitude-stable balanced oscillator for the VHF,HYPER and UHF frequency range
·Optimum decoupling of input frequency from oscillator
·Double balanced mixer with wide dynamic range and low-impedance inputs for the VHF, HYPER and UHF frequency range
· Internal band switch
· Internal low-noise reference voltage source
· Package TSSOP 28
· Full ESD protection

Application

· The IC is suitable for all tuners in TV- and VCR-sets or cable set-top receivers for analog TV an Digital Video Broadcasting

Pinout

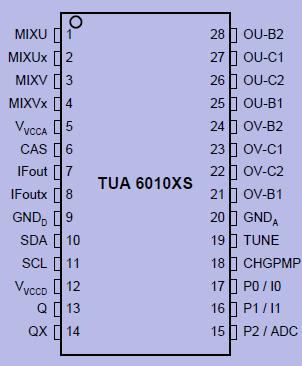

Connection Diagram

Description

The TUA6010XS device combines a digitally programmable phase locked loop (PLL), with a mixer-oscillator block
including two balanced mixers and oscillators for use in TV tuners.
