Product Details

Description



Features:

.Voltage Control
.Current Control
.Low Battery Detection and End Of Charge



Application

·LOW SUPPLYCURRENT : 200mA/amp.
·MEDIUM SPEED : 2.1MHz
·LOW LEVEL OUTPUT VOLTAGE CLOSE TO VCC - : 0.1V typ.
·INPUT COMMON MODE VOLTAGE RANGE
·INCLUDES GROUND

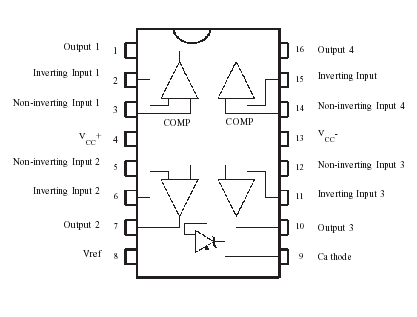

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC

Vid

Vi

Toper

Tj
 Supply Voltage

Differential Input Voltage

Input Voltage

Operating Free-air Temperature Range

Maximum Junction Temperature

Thermal Resistance Juction to Ambient (SO package)		 36

36

-0.3 to +36

-40 to +125

150

150		 V

V





/W



Description

The TSM102 is a monolithic IC that includes two op-amps, two comparators and a precision voltage reference. The TSM102 is offering space and cost saving in many applications like powersupply management or data acquisition systems.a
