Product Details

Description

Pinout

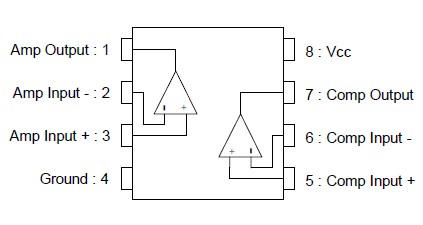

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	32	V
V_id	Differential Input Voltage	32	V
V_i	Input Voltage	-03. to +32	V
T_oper	Operating Free-air Temperature Range	-40 to +105
T_j	Maximum Junction Temperature	150
T_l	Maximum Lead Temperature (10 seconds maximum)	260
R_thja	Thermal Resistance Junction to Ambient	175	/W

Description

The TSM100I is a monolithic IC that includes one independent op-amp and one independent comparator. The TSM100I is offering space and cost saving in many applications like power supply management or data acquisition systems.
