TSM101

Features: ·1.24V SERIES VOLTAGE REFERENCE WITH 10mA OUTPUT CURRENT AND 1% PRECI-SION (TSM101A)·TWO OPERATIONAL AMPLIFIERS WITH ORED OUTPUT AND 1MHZ GAIN BAND WIDTH PRODUCT·BUILT-IN CURRENT GENERATOR WITH EN ABLE/DISABLEFUNCTION·4.5 TO 32V SUPPLY VOLTAGE RANGE· SO8, DIP8 AND TSSOP8 PACKAGESApplicat...

product image

TSM101 Picture
See larger image
SeekIC No. : 004529585 Detail

TSM101: Features: ·1.24V SERIES VOLTAGE REFERENCE WITH 10mA OUTPUT CURRENT AND 1% PRECI-SION (TSM101A)·TWO OPERATIONAL AMPLIFIERS WITH ORED OUTPUT AND 1MHZ GAIN BAND WIDTH PRODUCT·BUILT-IN CURRENT GENERATOR...

TSM101 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TSM101
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 ·1.24V SERIES VOLTAGE REFERENCE WITH 10mA OUTPUT CURRENT AND 1% PRECI-SION (TSM101A)
 ·TWO OPERATIONAL AMPLIFIERS WITH ORED OUTPUT AND 1MHZ GAIN BAND WIDTH PRODUCT
 ·BUILT-IN CURRENT GENERATOR WITH EN ABLE/DISABLEFUNCTION
 ·4.5 TO 32V SUPPLY VOLTAGE RANGE
 · SO8, DIP8 AND TSSOP8 PACKAGES


Application

This circuit is designed to be used in battery chargers with a constant voltage and a limited output current.

It canbeused in everytypes of applicationrequiring a precision voltage regulation and current limitation.

Other applications include voltage supervisors, over voltage protection...




Pinout

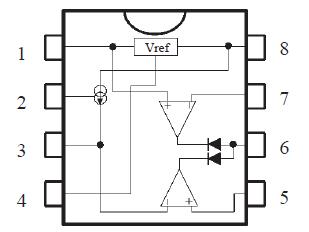

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VCC DC Supply Voltage - (note 1)
36
V
Iout Output Current - (note 2)
20
mA
Pd Power Dissipation
200
mW
Vin Input Voltage - (note 3)
-0.3, VCC -1.5
V
Iin Input Current
±1
mA
Tstg Storage Temperature
-40 to +125
Tj Maximum Junction Temperature
150
Tthja Thermal Resistante Junction to Ambiant
130 to 200
/W
Notes : 1. All voltages values, except differential voltage are with respect to network ground terminal.
             2. The voltage reference is not protected against permanent short circuit .


Description

The TSM101/TSM101Aintegrated circuit incorporates a high stability series band gap voltage reference, two ORed operational amplifiers and a current source.

The TSM101 compares the DC voltage and the current level at the output of a switching power supply to an internal reference. It provides a feedback through an optocouplerto the PWMcontroller IC in the primary side.

The TSM101 can be used to modify the level of current limitation by offsetting the information coming from the current sensing resistor.
