Product Details

Description

Features:

`2 SEPARATE STANDBY : REDUCED CONSUMPTION AND HIGH IMPEDANCE OUTPUTS
` LOW SUPPLY CURRENT : 4.5mA
`HIGH SPEED : 150MHz - 110V/s
` UNITY GAIN STABILITY
`LOW OFFSET VOLTAGE : 4mV
`LOW NOISE 4.2 nV/ Hz
`LOW COST
`SPECIFIED FOR 600W AND 150W LOADS
`HIGH VIDEO PERFORMANCES :
    Differential Gain : 0.03%
    Differential Phase : 0.07°
    Gain Flatness : 6MHz, 0.1dB max. @ 10dB gain
` HIGH AUDIO PERFORMANCES
`ESD TOLERANCE : 2kV

Pinout

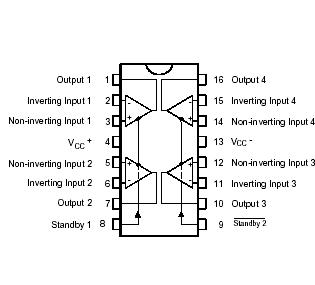

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
VCC	Supply Voltage	14	V
Vid	Differential Input Voltage	±5	V
Vi	Input Voltage	-0.3 to 12	V
Toper	Operating Free-Air Temperature range	-40 to +125
Tstg	Storage Temperature Range	-65 to +150

Description

The TSH95 is a quad low power high frequency op-amp, designated for high quality video processing.

The TSH95 offers an excellent speed consumption ratio with 4.5mA per amplifier for 150MHz bandwidth.

High slew rate and low noise make it also suitable for high quality audio applications. The TSH95 offers 2 separate complementary
