TSH93

Features: ` LOW SUPPLY CURRENT : 4.5mA` HIGH SPEED : 150MHz - 110V/s` UNITY GAIN STABILITY` LOW OFFSET VOLTAGE : 4mV` LOW NOISE 4.2 nV/ Hz` LOW COST`SPECIFIED FOR 600W AND 150 LOADS` HIGH VIDEO PERFORMANCES : Differential Gain : 0.03% Differential Phase : 0.07o Gain Flatness : 6MHz, 0.1dB max. @ 1...

product image

TSH93 Picture
See larger image
SeekIC No. : 004529481 Detail

TSH93: Features: ` LOW SUPPLY CURRENT : 4.5mA` HIGH SPEED : 150MHz - 110V/s` UNITY GAIN STABILITY` LOW OFFSET VOLTAGE : 4mV` LOW NOISE 4.2 nV/ Hz` LOW COST`SPECIFIED FOR 600W AND 150 LOADS` HIGH VIDEO PERF...

TSH93 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TSH93
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` LOW SUPPLY CURRENT : 4.5mA
` HIGH SPEED : 150MHz - 110V/s
` UNITY GAIN STABILITY
` LOW OFFSET VOLTAGE : 4mV
` LOW NOISE 4.2 nV/ Hz
` LOW COST
`SPECIFIED FOR 600W AND 150 LOADS
` HIGH VIDEO PERFORMANCES :
    Differential Gain : 0.03%
    Differential Phase : 0.07o
    Gain Flatness : 6MHz, 0.1dB max. @ 10dB gain
` HIGH AUDIO PERFORM
` ESD TOLERANCE : 2kV




Pinout

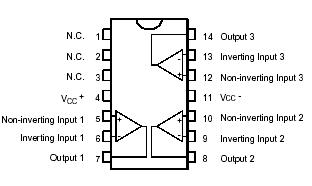

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage1)
 ±14 V
Vid Differential Input Voltage2)
 ±5 V
Vi Input Voltage3) -0.3 to 12 V
Toper Operating Free-Air Temperature range -40 to +125
Tstg Storage Temperature Range -65 to +150

1. All voltages values, except differential voltage are with respect to network ground terminal
2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal
3. The magnitude of input and output voltages must never exceed VCC + +0.3V


Description

The TSH93 is a triple low power high frequency op-amp, designated for high quality video signal processing. The TSH93 offers an excellent speed consumption ratio with 4.5mA per amplifier for 150MHz bandwidth.

High slew rate and low noise make TSH93  also suitable for high quality audio applications.
