TSH512

Features: ·Supply voltage: 2.3V to 5.5V·Carriers frequency range: 0.4 to 11 MHz· High versatility: I/O pins for each section·Two FM transmitters for stereo·Sinusoidal carriers for high spectral purity· Micro or line level preamplifiers with ALC· VOX function to save on battery power· Transmitter 2...

product image

TSH512 Picture
See larger image
SeekIC No. : 004529468 Detail

TSH512: Features: ·Supply voltage: 2.3V to 5.5V·Carriers frequency range: 0.4 to 11 MHz· High versatility: I/O pins for each section·Two FM transmitters for stereo·Sinusoidal carriers for high spectral puri...

TSH512 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TSH512
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Supply voltage: 2.3V to 5.5V
·Carriers frequency range: 0.4 to 11 MHz
· High versatility: I/O pins for each section
·Two FM transmitters for stereo
·Sinusoidal carriers for high spectral purity
· Micro or line level preamplifiers with ALC
· VOX function to save on battery power
· Transmitter 2 Standby for mono operation


Application

· Infrared HiFi stereo transmitter
· Infrared Headsets
· Stereo sub-carrier for video transmitters
· Voice operated wireless webcams
· FM IF transmit systems


Pinout

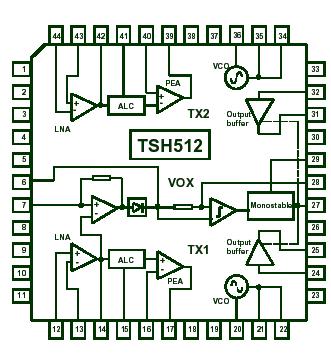

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage1) 7 V
Toper Operating Free-Air Temperature range -40 to +85
Tstg Storage Temperature -65 to +150
Tj Maximum Junction Temperature 150
Rthjc Thermal Resistance Junction to Case
14		 /W
Latch-up Class2) A
ESD sensitive device: handling precautions required
ESD
except pin
20 & 36		 HBM: Human Body Model3)
CDM: Charged Device Model4)
MM: Machine Model5)		 2
1
0.2		 KV



Description

The TSH512 is a 0.4 to 11 MHz dual FM transmitter. Access pins to each section give a high versatility and allow several applications: stereo headphone, multimedia headset, audio sub-carrier generator.

The TSH512 integrates in one chip: Low-noise audio preamplifiers with ALC (Automatic Level Control), frequency modulated oscillators, and linear output buffers to drive external transistors.

For MONO applications, the STAND-BY pin enables one transmitter only, reducing the supply current.

The TSH512 forms a chipset with the dual receiver TSH511.
