TSH511

Features: `Supply voltage: 2.3V to 5.5V`Carriers frequency range: 0.4 to 11 MHz` Two FM receivers for stereo` Integrated audio buffers`Audio outputs: 20 mW into 16 ohms` High sensitivity: 4V @12dB SINAD` Flexibility: access pins for each section`Receiver 2 Standby for mono operationApplication·Inf...

product image

TSH511 Picture
See larger image
SeekIC No. : 004529467 Detail

TSH511: Features: `Supply voltage: 2.3V to 5.5V`Carriers frequency range: 0.4 to 11 MHz` Two FM receivers for stereo` Integrated audio buffers`Audio outputs: 20 mW into 16 ohms` High sensitivity: 4V @12dB S...

TSH511 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TSH511
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Supply voltage: 2.3V to 5.5V
`Carriers frequency range: 0.4 to 11 MHz
` Two FM receivers for stereo
` Integrated audio buffers
`Audio outputs: 20 mW into 16 ohms
` High sensitivity: 4V @12dB SINAD
` Flexibility: access pins for each section
`Receiver 2 Standby for mono operation


Application

·Infrared HiFi stereo receiver
·Infrared Multimedia Headsets
·Stereo sub-carrier demodulator
· FM IF receiver systems
·Power Line Carrier Intercoms


Pinout

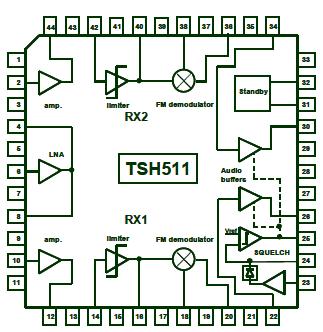

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage1)
 7 V
Toper Operating Free-Air Temperature range -40 to +85
Tstg Storage Temperature -65 to +150
Tj Maximum junction temperature 150
Rthjc Thermal resistance junction to case 14 /W
ESD
except
for pin 6		 HBM: Human Body Model2)
CDM: Charged Device Model3)
MM: Machine Model4)		 2
1.5
0.2		 kV
ESD only
for pin 6		 HBM: Human Body Model
CDM: Charged Device Model
MM: Machine Model		 1
1
0.1		 kV
Latch-up Class5) A

1. All voltages values, except differential voltage, are with respect to network ground terminal
2. ElectroStatic Discharge pulse (ESD pulse) simulating a human body discharge of 100 pF through 1.5kW
3. Discharge to Ground of a device that has been previously charged.
4. ElectroStatic Discharge pulse (ESD pulse) approximating a pulse of a machine or mechanical equipment.
5. Corporate ST Microelectronics procedure number 0018695


Description

The TSH511 is a 0.4 to 11 MHz dual FM receiver. This circuit offers the functions needed for a highly sensitive infrared HiFi STEREO receiver.

Featuring high input sensitivity and high input dynamic range, each receiver integrates a RF front-end LNA, an intermediate amplifier with 2 external filters, a voltage limiter, a quadrature FM demodulator, and finally an audio buffer.

The integrated audio buffers of TSH511 are able to drive directly a 16 ohms headphone with 20mW.

A SQUELCH circuit mutes both audio amplifiers. Access pins to each section makes the TSH511 suited for a wide field of applications.

For MONO applications, the STANDBY pin enables one receiver only, reducing the supply current.

The TSH511 forms a chipset with the dual transmitter TSH512.
