TSC8051C1

` Boolean processor
` Fully static design
` 8K bytes of ROM
` 256 bytes of RAM
` 2 x 16bit timer/counter
` Programmable serial port
` Programmable Multimaster I2C controller
` 6 interrupt sources:
   External interrupts (2)
   Timers interrupt (2)
   Serial port interrupt
   I2C interrupt
` Watchdog reset
` On chip oscillator for crystal or ceramic resonator
` 2 power saving control modes:
  Idle mode
  Powerdown mode
` Controlled HSYNC & VSYNC outputs
` Up to 12 programmable PWM channels with 8bit resolution
` Up to 32 programmable I/O lines depending on the package

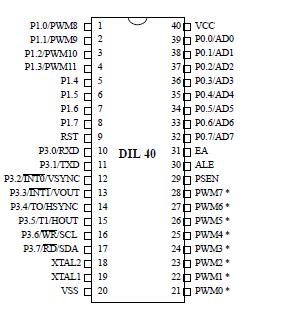

` 40 pins DIP, 44 pins PQFP, 44 and 52 pins PLCC packages
` Commercial and industrial temperature ranges
` Operating Frequency: 12 MHz to 16 MHz

The TSC8051C1 is a standalone high performance CMOS 8bit embedded microcontroller and is designed for use in CRT monitors. It is also suitable for automotive and industrial applications.

The TSC8051C1 includes the fully static 8bit "80C51" CPU core with 256 bytes of RAM; 8 Kbytes of ROM; two 16bit timers; 12 PWM Channels; a 6 sources and 2level interrupt controller; a full duplex serial port; a full I2CE* interface; a watchdog timer and onchip oscillator.

In addition, the TSC8051C1 has 2 software selectable modes of reduced activity for further reduction in power consumption. In the idle mode the CPU is frozen while the RAM, the timers, the serial ports, and the interrupt system continue to function. In the power down mode the RAM is saved and all other functions are inoperative.

The TSC8051C1 enables the users reducing a lot of external discrete components while bringing the maximum of flexibility.
